IDEAL 92-659 RG6 REG/TRI/QUAD F COMPRESSION CONNECTORS 1000

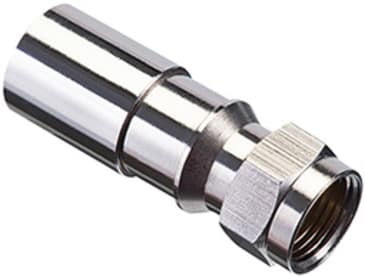

IDEAL® RTQ™ Compression Connector, F Type, RG-6 Cable, 75 Ohm Impedance, Brass, Nickel Plated

Connector Model: 6FRTQXRAccepts RG-6/RG-6 Quad/RG-6 Plenum/RG-6 Plenum Quad coax cablesCenter conductor range: AllDielectric diameter range: .168” - .183”Outer jacket diameter range: .226” - .310”Recommended cable prep/stripping tool: 45-605 PrepPRO; 45-526Recommended compression tools: 30-793 OmniSeal PRO XL; 33-632 Linear X3The IDEAL RTQ XR series of F connectors offer a single connector solution to cover a range of coax types, including plenum rated versions. A patented compression sleeve design allows Regular (dual), Tri, and Quad shield cables all to be terminated within a single connector. All RTQ connectors have an all brass exterior and an inner O-ring to provide a robust, weather proof connection suitable for just about any application - indoors or outdoors.RG 59/6/6Q sized connectors are available for use in applications and installations from 5MHz to 3GHz, including CATV, satellite, HDTV and other A/V based applications. An internal sealing compression sleeve prevents moisture from entering the backside of the connector and aids in cable retention.All RTQ connectors require an industry standard ¼” x ¼” cable preparation and are permanently attached to the cable when using an IDEAL OmniSeal Pro or LinearX compression tool.
