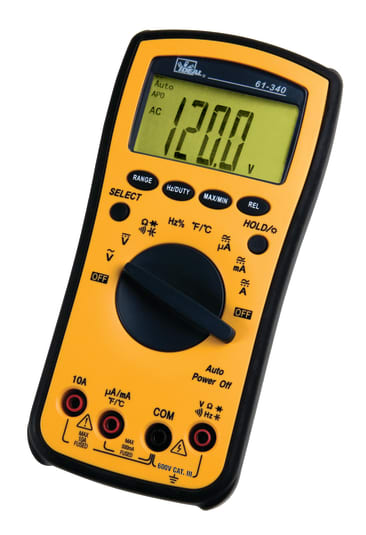

IDEAL 61-340 Image 1

IDEAL 61-340 TEST-PRO MULTIMETER

MFR Part #: 61-340
SKU #: 1039200
Brand: IDEAL®
UPC: 783250682539
IDEAL® Test-Pro® 61-340 340 Digital Multimeter, 4 to 600 VAC, 400 mV to 600 VDC, 400 uA to 10 A, 4 kOhm to 40 MOhm, LCD Display
2 years
This product may be subject to ecological fees.
TL-310 Test Leads, 9 VDC Battery and Operating Instructions
RoHS Compliant | UL File No. 61010 | CE Marked | C 12966

IDEAL® Test-Pro® Digital Multimeter, Series: 340, 4 to 600 VAC, 400 mV to 600 VDC, 400 uA to 10 A, 10 Hz to 4 MHz Frequency, 4 kOhm to 40 MOhm Resistance, Safety Rating: CAT III 600 V AC/DC, 400 nF to 4000 uF Capacitance, 73 deg C +/- 41 deg C <75% RH Accuracy, LCD Display, 61-340 200 hr, 61-342 150 hr 9 VDC NEDA 1604 Alkaline Battery, Yes Diode Test, 7 in H x 3.5 in W x 1.9 in D Dimensions, 32 to 140 deg F at <75% RH, -4 to 140 deg F at <80% RH without Battery Storage Temperature

Product Details

IDEAL® Test-Pro® Digital Multimeter, Series: 340, 4 to 600 VAC, 400 mV to 600 VDC, 400 uA to 10 A, 10 Hz to 4 MHz Frequency, 4 kOhm to 40 MOhm Resistance, Safety Rating: CAT III 600 V AC/DC, 400 nF to 4000 uF Capacitance, 73 deg C +/- 41 deg C <75% RH Accuracy, LCD Display, 61-340 200 hr, 61-342 150 hr 9 VDC NEDA 1604 Alkaline Battery, Yes Diode Test, 7 in H x 3.5 in W x 1.9 in D Dimensions, 32 to 140 deg F at <75% RH, -4 to 140 deg F at <80% RH without Battery Storage Temperature

Attributes

Accuracy: 73 deg C +/- 41 deg C <75% RH
Amperage Rating: 400 uA to 10 A
Battery Type: 61-340 200 hr, 61-342 150 hr 9 VDC NEDA 1604 Alkaline
Capacitance: 400 nF to 4000 uF
Dimensions: 7 in H x 3.5 in W x 1.9 in D
Diode Test: Yes
Display Type: LCD
Frequency Rating: 10 Hz to 4 MHz
Resistance: 4 kOhm to 40 MOhm
Safety Rating: CAT III 600 V AC/DC
Series: 340
Temperature Rating: 32 to 140 deg F at <75% RH, -4 to 140 deg F at <80% RH without Battery Storage Temperature
Voltage Rating: 4 to 600 V AC/400 mV to 600 V DC

Features

  • Measures AC/DC voltage, AC/DC current, resistance, capacitance, temperature, frequency and audible continuity
  • Relative mode, backlight
  • Minimum maximum data hold
  • Low battery indicator
  • Auto power off
  • 0.7 V RMS, greater than 1 MHz 5 V RMS sensitivity
  • 400 mVDC/4/40/400 VDC at +/-(0.5% +5), 600 VDC at +/-(1% +3) DC voltage accuracy
  • F-340 0.500 A (500 VAC) 6.350 x 32 mm fuse, F-341 10 A (1000 VAC) 10 x 38 mm fuse, 9 VDC battery, TL-100 test leads with alligator clips, C-290 nylon carrying case replacement parts
  • The beeper turns on less than 25 ohm and turns off at greater than 120 ohm continuity
  • -58 to 1500 deg F at +/-(3% +5), -50 to 800 deg C at +/-(3% +3) temperature measurement accuracy
  • 10 MOhm for VAC and VDC input impedance
  • 10/100 Hz/1/10/100 kHz/1/10 MHz at +/-(0.1% +3) frequency measurement accuracy
