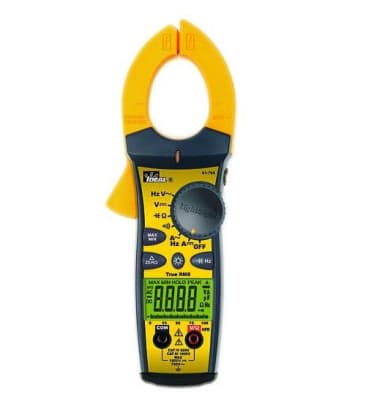

IDEAL 61-765 Image 1

IDEAL 61-765 660A AC/DC CLAMP METER W/TIGHTSIGHT TRMS

MFR Part #: 61-765
SKU #: 1085224
Brand: IDEAL®
UPC: 783250659470
IDEAL® TightSight® 61-765 760 Clamp Meter, 750 V AC/999.9V DC, 660A, 9999 Ohm, 20 to 400 Hz, 1.42 in Jaw, LCD Display
This product may be subject to ecological fees.
Carrying Case, Test Leads With Alligator Clip, (1) 9 V Battery, Operating Instructions
For a Variety of Industrial and Commercial Environments
cULus | CE Certified | N12966 | CAT III-1000V | CAT IV - 600V | UL 61010 Listed | Complies with (UL61010-1) (Second Edition) | IEC 61010-2-032 | IEC 61010-031. EN61010-1 | EN61010-2-032 | EN61010-031 specifications | CAN/CSA C22.2 No 1010.1-92 and CAN/CSA C22.2 No 1010.2.032-96 | RoHS Compliant

IDEAL® TightSight® Clamp Meter, Series: 760, 750 V AC/999.9V DC, 660A Electrical Rating, 9999 Ohm Resistance, 20 to 400 Hz Frequency, 1.42 in Jaw, 9999 Count, LCD Display, 2.0% + 5 Digits AC Current Accuracy, 6.0% + 5 Digits AC, 1.5% + 5 Digits DC Voltage Accuracy, Safety Rating: CAT IV 600V/CAT III 1000V, 9 V Battery Power Source, 28 deg C Operating, 8.7 in H x 3.1 in W x 1.8 in D Dimensions

The new feature-rich IDEAL TightSight® Clamp Meters are built to professional quality standards to withstand tough use in commercial and industrial settings. The High Frequency Rejection (HFR) feature measures accurately even in noisy electrical environments. For everything from load measurement to troubleshooting industrial motors and adjustable speed drives (ASDs), the new TightSight Clamps bring speed, accuracy, safety and ease-of-use together in one rugged meter line.

Product Details

IDEAL® TightSight® Clamp Meter, Series: 760, 750 V AC/999.9V DC, 660A Electrical Rating, 9999 Ohm Resistance, 20 to 400 Hz Frequency, 1.42 in Jaw, 9999 Count, LCD Display, 2.0% + 5 Digits AC Current Accuracy, 6.0% + 5 Digits AC, 1.5% + 5 Digits DC Voltage Accuracy, Safety Rating: CAT IV 600V/CAT III 1000V, 9 V Battery Power Source, 28 deg C Operating, 8.7 in H x 3.1 in W x 1.8 in D Dimensions

The new feature-rich IDEAL TightSight® Clamp Meters are built to professional quality standards to withstand tough use in commercial and industrial settings. The High Frequency Rejection (HFR) feature measures accurately even in noisy electrical environments. For everything from load measurement to troubleshooting industrial motors and adjustable speed drives (ASDs), the new TightSight Clamps bring speed, accuracy, safety and ease-of-use together in one rugged meter line.

Attributes

AC Current Accuracy: 2.0% + 5 Digits
Counts: 9999
Dimensions: 8.7 in H x 3.1 in W x 1.8 in D
Display Type: LCD
Electrical Ratings: 750 V AC/999.9V DC, 660A
Frequency Rating: 20 to 400 Hz
Jaw Capacity: 1.42 in
Operating Temperature: 28 deg C
Power Source: 9 V Battery
Resistance: 9999 Ohm
Safety Rating: CAT IV 600V/CAT III 1000V
Series: 760
Voltage Accuracy: 6.0% + 5 Digits AC, 1.5% + 5 Digits DC

Features

  • Tapered jaws with hook tip
  • Audible continuity
  • High frequency rejection
  • Peak hold, Max/min hold, Data hold
