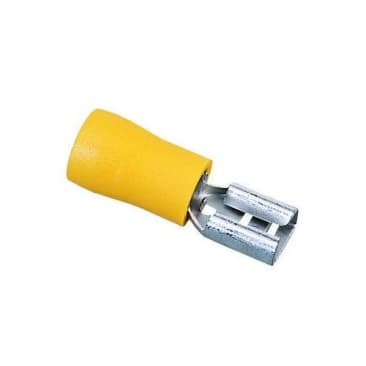

IDEAL 83-9601 Image 1

IDEAL 83-9601 12-10AWG VINYL INSULATED FEM DISCONNECT (PK25)

MFR Part #: 83-9601
SKU #: 1267651
Brand: IDEAL®
UPC: 783250490653
IDEAL® 83-9601 Female Disconnect Terminal, 12 to 10 AWG Conductor, 0.25 x 0.032 in Tab, Shouldered Barrel, Brass, Yellow
RoHS Compliant | cUL Listed

IDEAL® Female Disconnect Terminal, 12 to 10 AWG Conductor, 0.25 x 0.032 in Tab, Shouldered Barrel, Crimp Terminal, 300 V AC, Specifications: 0.244 in Dia Insulation, 75 deg C, Brass, Yellow, TiN Plated, 0.917 in L x 0.26 in W Dimensions, Insulated

Butted seam-construction prevents splitting under maximum pressureInternal barrel serrations grip wires tightly to resist pull-out and reduce electrical resistanceTin-plated brass construction for corrosion resistanceShouldered barrel insulation quickly positions terminal for proper crimpingExpanded insulation entry accommodates a wide variety of insulation diameters and provides additional insulation supportThe complete line of IDEAL crimp terminals, disconnects, and splices offer the right product for any electrical system that might be encountered. From rings and spades to insulated disconnects, there is a product for any wire range. All insulated terminals are color-coded for easy identification and come in durable plastic packaging for easy storage.

Product Details

IDEAL® Female Disconnect Terminal, 12 to 10 AWG Conductor, 0.25 x 0.032 in Tab, Shouldered Barrel, Crimp Terminal, 300 V AC, Specifications: 0.244 in Dia Insulation, 75 deg C, Brass, Yellow, TiN Plated, 0.917 in L x 0.26 in W Dimensions, Insulated

Butted seam-construction prevents splitting under maximum pressureInternal barrel serrations grip wires tightly to resist pull-out and reduce electrical resistanceTin-plated brass construction for corrosion resistanceShouldered barrel insulation quickly positions terminal for proper crimpingExpanded insulation entry accommodates a wide variety of insulation diameters and provides additional insulation supportThe complete line of IDEAL crimp terminals, disconnects, and splices offer the right product for any electrical system that might be encountered. From rings and spades to insulated disconnects, there is a product for any wire range. All insulated terminals are color-coded for easy identification and come in durable plastic packaging for easy storage.

Attributes

Barrel Type: Shouldered
Color: Yellow
Conductor Size: 12 to 10 AWG
Country Of Origin: Taiwan
Dimensions: 0.917 in L x 0.26 in W
Finish: Tin Plated
Insulated: Insulated
Material: Brass
Specifications: 0.244 in Dia Insulation
Tab Size: 0.25 x 0.032 in
Temperature Rating: 75 deg C
Terminal Type: Crimp
Voltage Rating: 300 V AC

Features

  • Butted seam-construction prevents splitting under maximum pressure
  • Internal barrel serrations grip wires tightly to resist pull-out and reduce electrical resistance
  • Tin-plated brass construction for corrosion resistance
  • Expanded insulation entry accommodates a wide variety of insulation diameters and provides additional insulation support

Resources

RoHS
