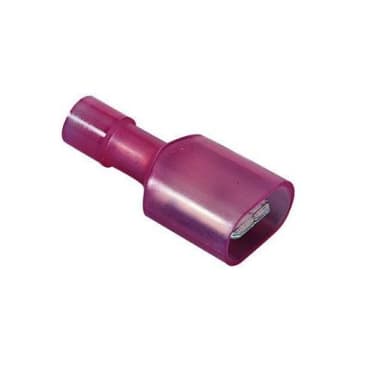

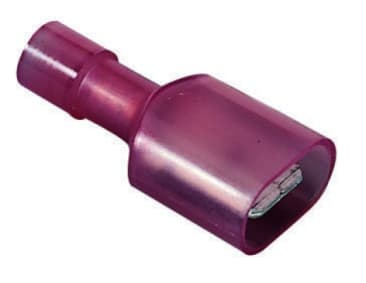

IDEAL 83-9771 Image 1

IDEAL 83-9771 22-18AWG NYLON FULLY INSULATED FEM DISCONNECT (PK25)

MFR Part #: 83-9771
SKU #: 1267653
Brand: IDEAL®
UPC: 783250490660
IDEAL® 83-9771 Female Disconnect Terminal, 22 to 18 AWG Conductor, 0.25 x 0.032 in Tab, Shouldered Barrel, Brass/Nylon, Red
RoHS Compliant | cUL Listed

IDEAL® Female Disconnect Terminal, 22 to 18 AWG Conductor, 0.25 x 0.032 in Tab, Shouldered Barrel, Crimp Terminal, 300 V AC, Specifications: 0.15 in Dia Insulation, 221 deg F, Brass/Nylon, Red, TiN Plated, 0.866 in L x 0.26 in W Dimensions, Fully Insulated

Butted seam-construction prevents splitting under maximum pressureInternal barrel serrations grip wires tightly to resist pull-out and reduce electrical resistanceTin-plated brass construction for corrosion resistanceShouldered barrel insulation quickly positions terminal for proper crimpingExpanded insulation entry accommodates a wide variety of insulation diameters and provides additional insulation supportThe complete line of IDEAL crimp terminals, disconnects, and splices offer the right product for any electrical system that might be encountered. From rings and spades to insulated disconnects, there is a product for any wire range. All insulated terminals are color-coded for easy identification and come in durable plastic packaging for easy storage.

Product Details

IDEAL® Female Disconnect Terminal, 22 to 18 AWG Conductor, 0.25 x 0.032 in Tab, Shouldered Barrel, Crimp Terminal, 300 V AC, Specifications: 0.15 in Dia Insulation, 221 deg F, Brass/Nylon, Red, TiN Plated, 0.866 in L x 0.26 in W Dimensions, Fully Insulated

Butted seam-construction prevents splitting under maximum pressureInternal barrel serrations grip wires tightly to resist pull-out and reduce electrical resistanceTin-plated brass construction for corrosion resistanceShouldered barrel insulation quickly positions terminal for proper crimpingExpanded insulation entry accommodates a wide variety of insulation diameters and provides additional insulation supportThe complete line of IDEAL crimp terminals, disconnects, and splices offer the right product for any electrical system that might be encountered. From rings and spades to insulated disconnects, there is a product for any wire range. All insulated terminals are color-coded for easy identification and come in durable plastic packaging for easy storage.

Attributes

Barrel Type: Shouldered
Color: Red
Conductor Size: 22 to 18 AWG
Country Of Origin: Taiwan
Dimensions: 0.866 in L x 0.26 in W
Finish: Tin Plated
Insulated: Fully Insulated
Material: Brass/Nylon
Specifications: 0.15 in Dia Insulation
Tab Size: 0.25 x 0.032 in
Temperature Rating: 221 deg F
Terminal Type: Crimp
Voltage Rating: 300 V AC

Features

  • Butted seam-construction prevents splitting under maximum pressure
  • Internal barrel serrations grip wires tightly to resist pull-out and reduce electrical resistance
  • Tin-plated brass construction for corrosion resistance
  • Expanded insulation entry accommodates a wide variety of insulation diameters and provides additional insulation support

Resources

RoHS
