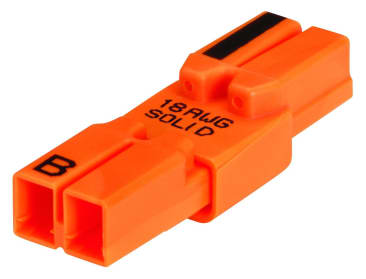

IDEAL 30-082 Image 1

IDEAL 30-082 MODEL 182 18AWG 2-WIRE POWERPLUG LUMINAIRE DISCONNECT (PK100)

MFR Part #: 30-082
SKU #: 1267657
Brand: IDEAL®
UPC: 783250656721
IDEAL® PowerPlug® 30-082 2-Wire Solid Luminaire Disconnect, 18 AWG Wire, 1.55 in OAL, 2 Ports, Orange
For 1-ballast fixture retrofit application
CEC 30-308(4) | CSA C22.2 No. 182.3 | NEC 2008 410.130(G) | RoHS Compliant | UL 2459 | UL94 V-0 Flammability Rating

IDEAL® PowerPlug® Luminaire Disconnect, 2-Wire Solid, 18 AWG Wire, 1.55 in Overall Length, 2 Ports, 120/277/347/480/600 VAC, Push-In Connection, Copper Alloy Connection, Specifications: 3/8 +/- 1/16 in L Strip, 3/1.3/1/0.75/0.6 A Current Rating, 3 to 8 lb Mating or Unmating Force, 10 Cycles Current Interruption, 221 deg F, Nylon, Orange, Tin Plated, 0.4 in W x 0.52 in H Dimensions

Patented design allows for safe mating and demating of connectorAvailable in 2-pole, 3-pole, 4-pole, and 6-pole modelsIndustry leading connector for LED retrofit kitsBoth halves are touch-safe? per UL 2459Push-in technology results in quicker connections, saving time and increasing productivityFits through 1/2 in. knockoutKits available for all lighting installation and maintenance needsThe PowerPlug Luminaire Disconnect features patented IDEAL push-in technology that quickly locks wires in place. It helps reduce electrical shock hazard during luminaire replacement by safely disconnecting the wiring while offering additional safety since both halves meet UL and CSA finger-probe safety requirements. The entire family easily fits through 1/2-inch knockouts for quick installation.

Product Details

IDEAL® PowerPlug® Luminaire Disconnect, 2-Wire Solid, 18 AWG Wire, 1.55 in Overall Length, 2 Ports, 120/277/347/480/600 VAC, Push-In Connection, Copper Alloy Connection, Specifications: 3/8 +/- 1/16 in L Strip, 3/1.3/1/0.75/0.6 A Current Rating, 3 to 8 lb Mating or Unmating Force, 10 Cycles Current Interruption, 221 deg F, Nylon, Orange, Tin Plated, 0.4 in W x 0.52 in H Dimensions

Patented design allows for safe mating and demating of connectorAvailable in 2-pole, 3-pole, 4-pole, and 6-pole modelsIndustry leading connector for LED retrofit kitsBoth halves are touch-safe? per UL 2459Push-in technology results in quicker connections, saving time and increasing productivityFits through 1/2 in. knockoutKits available for all lighting installation and maintenance needsThe PowerPlug Luminaire Disconnect features patented IDEAL push-in technology that quickly locks wires in place. It helps reduce electrical shock hazard during luminaire replacement by safely disconnecting the wiring while offering additional safety since both halves meet UL and CSA finger-probe safety requirements. The entire family easily fits through 1/2-inch knockouts for quick installation.

Attributes

Color: Orange
Connection Material: Copper Alloy
Connection Type: Push-In
Country Of Origin: US
Dimensions: 0.4 in W x 0.52 in H
Finish: Tin Plated
Material: Nylon
Number of Ports: 2
Overall Length: 1.55 in
Specifications: 3/8 +/- 1/16 in L Strip, 3/1.3/1/0.75/0.6 A Current Rating, 3 to 8 lb Mating or Unmating Force, 10 Cycles Current Interruption
Temperature Rating: 221 deg F
Type: 2-Wire Solid
Voltage Rating: 120/277/347/480/600 VAC
Wire Size: 18 AWG

Features

  • Patented design allows for safe mating and demating of connector
  • Industry leading connector for LED retrofit kits
  • Both halves are touch safe per UL 2459
  • Push-in technology results in quicker connections, saving time and increasing productivity
  • Meets the new NEC and CEC code changes for non-residential fluorescent luminaires
  • Perfect for new, retrofit or OEM lighting installations
  • Allows safe disconnect of hot and neutral ballast wiring
  • Pieces pull apart safely and easily
  • Low profile design
  • Colour-coded ends ballast side (white) and line side (orange)
  • Fits through 1/2 in knockout
