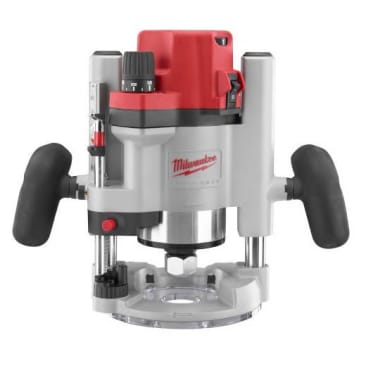

MILWAUKEE 5616-24 Image 1

MILWAUKEE 5616-24 2 1/4 HP EVS ROUTER COMBO KIT

MFR Part #: 5616-24
SKU #: 1191642
Brand: Milwaukee®
UPC: 0045242032792
Milwaukee® 5616-24 Double Insulated Multi-Base EVS Router Kit With Soft Start and Case, Rocker Switch, 1/4 in, 1/2 in Chuck, 2-1/4 hp, 120 V AC
5 years
(2) 1-1/8 in Collet Wrenches, 1/2 in Collet, 1/4 in Collet, Carrying Case, (2) Clear Sub-Bases, Concentricity Gauge, Dust Shield, Fixed Based Assembly and Plunge Base Assembly
CSA Certified | UL Listed

Milwaukee® EVS Router Kit, Double Insulated Multi-Base, 1/4 in, 1/2 in Chuck, 2-1/4 hp, 120 V AC, 13 A, Red, Rocker Switch, 8-1/2 in H Dimensions

The award winning line of Milwaukee routers is growing! A new heavy duty plunge base introduced in June 2007 now complements Milwaukee's award winning BodyGrip® fixed base in two new multi-base router kits, the 1-3/4 max HP (5615-24) and 2-1/4 max HP EVS (5616-24). Both multi-base kits deliver everything offered by the Milwaukee BodyGrip® fixed base router with its multitude of patented innovations. The additional new heavy duty plunge base offers unprecedented design and features that professional users are seeking.

Product Details

Milwaukee® EVS Router Kit, Double Insulated Multi-Base, 1/4 in, 1/2 in Chuck, 2-1/4 hp, 120 V AC, 13 A, Red, Rocker Switch, 8-1/2 in H Dimensions

The award winning line of Milwaukee routers is growing! A new heavy duty plunge base introduced in June 2007 now complements Milwaukee's award winning BodyGrip® fixed base in two new multi-base router kits, the 1-3/4 max HP (5615-24) and 2-1/4 max HP EVS (5616-24). Both multi-base kits deliver everything offered by the Milwaukee BodyGrip® fixed base router with its multitude of patented innovations. The additional new heavy duty plunge base offers unprecedented design and features that professional users are seeking.

Attributes

Amperage Rating: 13 A
Chuck Size: 1/4 in, 1/2 in
Color: Red
Dimensions: 8-1/2 in H
Horsepower: 2-1/4 hp
Switch Type: Rocker
Tool/Kit: Kit
Type: Double Insulated Multi-Base
Voltage Rating: 120 V AC

Features

  • Exclusive BodyGrip® design
  • Premium electronic motor feedback maintains speed and power under load
  • Electronic variable speed with soft start (10000 to 24000 rpm)
  • Micro-fine linear depth adjustment to within 1/64 in
  • Exclusive above-the-table depth adjustment system
  • Exclusive motor contamination shield minimizes damage, maximizes airflow
  • Precise macro/micro depth adjustment system to 1/64 in increment, 3 in metal depth scale, adjustable pointer and 6-position 1/8 in increment adjustable metal turret stops for precise, multiple-pass routing
