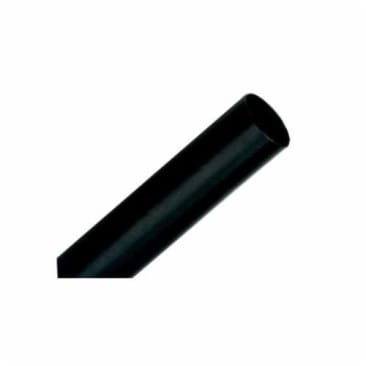

3M 5113536878 Image 1

HEAT SHRINK TUBING EPS-300-1/2IN-48IN BLACK 3M 036878

MFR Part #: 5113536878
SKU #: 1057451
Brand: 3M™
UPC: 036878
3M™ 5113536878 Flame-Retardant Non-Corrosive Heat Shrink Tubing, 1/2 in ID Expanded, 0.16 in ID Recovered, 0.07 in THK Wall Recovered, 48 in L, Flexible Polyolefin, Black
CSA Certified | RoHS Compliant | UL Listed

3M™, 5113536878, Heat Shrink Tubing, Flame-Retardant Non-Corrosive, 600 V AC, 1/2 in ID Expanded, 0.16 in ID Recovered, Dual (Thin) Wall, 0.07 in Wall Thickness Recovered, 3:1 Shrink Ratio, 48 in Length, -67 to 230 deg F, 250 deg F Shrink, Flexible Polyolefin, Black

3M™ heat shrink tubing EPS-300 is a thin-wall tubing offering the advantages of integral, dual wall construction. The tubing is made from flame-retardant, flexible polyolefin with an internal layer of special thermoplastic adhesive. The heat shrinkable outer wall is selectively irradiation cross linked, while the adhesive maintains high flow and excellent adhesion characteristics.

Product Details

3M™, 5113536878, Heat Shrink Tubing, Flame-Retardant Non-Corrosive, 600 V AC, 1/2 in ID Expanded, 0.16 in ID Recovered, Dual (Thin) Wall, 0.07 in Wall Thickness Recovered, 3:1 Shrink Ratio, 48 in Length, -67 to 230 deg F, 250 deg F Shrink, Flexible Polyolefin, Black

3M™ heat shrink tubing EPS-300 is a thin-wall tubing offering the advantages of integral, dual wall construction. The tubing is made from flame-retardant, flexible polyolefin with an internal layer of special thermoplastic adhesive. The heat shrinkable outer wall is selectively irradiation cross linked, while the adhesive maintains high flow and excellent adhesion characteristics.

Attributes

Color: Black
Inner Diameter Expanded: 1/2 in
Inner Diameter Recovered: .16 in
Length: 48 in
Material: Flexible Polyolefin
Shrink Ratio: 3:1
Shrink Temperature: 250 deg F
Temperature Rating: -67 to 230 deg F
Type: Adhesive Lined Flame-Retardant Non-Corrosive
Voltage Rating: 600 V AC
Wall Thickness Recovered: .07 in
Wall Type: Dual (Thin)

Features

  • Offers superb environmental protection for electronic components, wire splices, wire bundles and harness breakout
  • 700 V/mil dielectric strength
  • 2100 psi tensile strength
  • 450% elongation
  • 10 years shelf life
  • Environmental protection sleeve insulation, strain relief and environmental protection for automotive and marine wire bundles and splices
