3M™ Motor Lead Pigtail Splice Kit, Series: 30000 Series, 1/0 AWG to 250 kcmil Wire, Non-Shielded Single Conductor Cable, 1 kV, EPDM, Yellow, 90 to 130 deg C

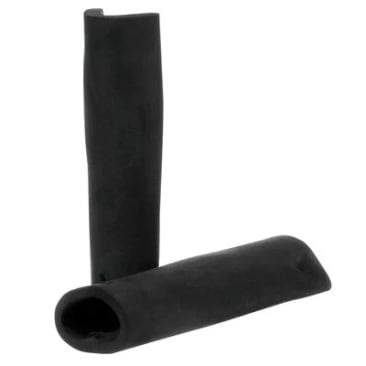

3M™ motor lead pigtail splice kits are designed for splicing motor lead cables to incoming feeder cables, including the accommodation of pigtail (stub) connections at 1000 V and less. The splice's main component, the slip-on lug cover, is made from EPDM rubber. Mastic strips are used for the moisture seal. These kits are designed to be used with copper compression, one-hole lugs. After being crimped onto the cables, the lugs are bolted together in a pigtail configuration, then insulated and sealed with the 3M™ motor lead splicing kit. 3M™ Scotchlok™ copper compression lugs 30000 series or other UL listed copper lugs, can be used (not included). Each kit includes 3 pigtail lug covers, 3 mastic sealing strips, 3 locking pins, 3 tubes of silicone grease and an instruction sheet.
