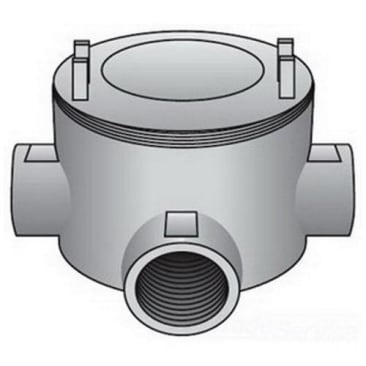

3/4 HZLOC CONDUIT OUTLET BOX O-Z/GEDNEY GUAT-75CS
MFR Part #: GUAT-75CS
SKU #: 0673110
Brand: O-Z Gedney
UPC: 783126061376
O-Z/Gedney GUAT-75CS Type GUAT Conduit Outlet Box With Internally Threaded Body, 3/4 in Hub, 3 in Cover Opening, Malleable Iron, Aluminum Enamel/Electroplated Zinc
Limited
O-Ring Gasket
For providing access to conductors for pulling, splicing, maintece and future changes/upgrades, allow connection of straight conduit runs, branch conduit runs and 90 deg bends
ARRA Compliant | UL File No. E30513 | Class I Division 1/2 Group C/D, Class I Zone 1/2 Group IIA/IIB, Class II Division 1/2 Group E/F/G, Class III | CSA 020945 | UL 886 | CSA C22.2 No. 30 | NEC 500-503/505 | Mil. Specification Mil-F-28675 | Federal Specification A-A-50563 | FM Certified
Product Details
Attributes
Features
Resources
O-Z/Gedney Conduit Outlet Box, Type GUAT, 3/4 in Hub, 3 in Cover Opening, 15 cu-in Capacity, For Use With: IMC/Rigid Conduit, Malleable Iron, Aluminum Enamel/Electroplated Zinc, 3-5/8 in W Dimensions
Capacity:15 cu-in
Cover Opening Size:3 in
Hub Size:3/4 in
Material:Malleable Iron
Suitable For Use With:IMC/Rigid Conduit
- GUA conduit outlet boxes are for use in hazardous locations to provide for change in conduit direction, access to conductors and as pull and splice boxes
- Outlet boxes with ground screw/lug
- They feature internally threaded bodies and cast in brackets on the cover and are suitable for use wet locations
- Malleable iron bodies have high tensile strength and ductility and provide great resistance to corrosion, impact and shock
- Included O-ring gasket provides NEMA 4 rating
- Smooth hub bushings protect insulation when pulling conductors
- Cast-in brackets on cover for use with breaker bar tools for tightening/loosening
- Tapered threaded hub (NPT)
- Hub covers, fixture canopies, sealing covers and threaded extensions available
- Functions as a 25% fill sealing fitting when used with GUASC sealing cover
Product Details
O-Z/Gedney Conduit Outlet Box, Type GUAT, 3/4 in Hub, 3 in Cover Opening, 15 cu-in Capacity, For Use With: IMC/Rigid Conduit, Malleable Iron, Aluminum Enamel/Electroplated Zinc, 3-5/8 in W Dimensions
Attributes
Capacity: 15 cu-in
Cover Opening Size: 3 in
Hub Size: 3/4 in
Material: Malleable Iron
Suitable For Use With: IMC/Rigid Conduit
Features
- GUA conduit outlet boxes are for use in hazardous locations to provide for change in conduit direction, access to conductors and as pull and splice boxes
- Outlet boxes with ground screw/lug
- They feature internally threaded bodies and cast in brackets on the cover and are suitable for use wet locations
- Malleable iron bodies have high tensile strength and ductility and provide great resistance to corrosion, impact and shock
- Included O-ring gasket provides NEMA 4 rating
- Smooth hub bushings protect insulation when pulling conductors
- Cast-in brackets on cover for use with breaker bar tools for tightening/loosening
- Tapered threaded hub (NPT)
- Hub covers, fixture canopies, sealing covers and threaded extensions available
- Functions as a 25% fill sealing fitting when used with GUASC sealing cover
