ABB 500M Image 1

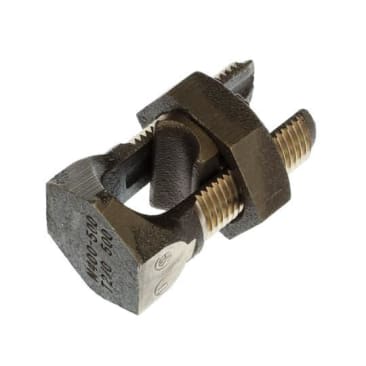

ABB 500M HIGH STRENGTH SPLIT BOLT CONNECTOR 500-400

MFR Part #: 500M
SKU #: 1272353
Brand: ABB | Blackburn®
UPC: 783786855261
Blackburn® 500M Type H High Strength Split Bolt Connector, 400 to 500 kcmil Stranded Copper Conductor, 1-1/2 x 3-1/32 in Bolt, Bronze Alloy
For splicing, tapping or terminating conductors in power and grounding electrical connection
UL File No. E9809 | CSA Certified

Blackburn® 500M Split Bolt Connector, Type H High Strength, Stranded Copper Conductor, 400 to 500 kcmil Conductor, 1-1/2 x 3-1/32 in Bolt, Specifications: 0.842 in Split, 1-7/8 in Hex Nut, Bronze Alloy, Metallic

Product Details

Blackburn® 500M Split Bolt Connector, Type H High Strength, Stranded Copper Conductor, 400 to 500 kcmil Conductor, 1-1/2 x 3-1/32 in Bolt, Specifications: 0.842 in Split, 1-7/8 in Hex Nut, Bronze Alloy, Metallic

Attributes

Bolt Size: 1-1/2 x 3-1/32 in
Color: Metallic
Conductor Size: 400 to 500 kcmil
Conductor Type: Stranded Copper
Country Of Origin: Mexico
Material: Bronze Alloy
Specifications: 0.842 in Split, 1-7/8 in Hex Nut
Type: Type H High Strength

Features

  • Bolt and nut of high-strength corrosion resistant bronze alloy
  • Pressure bar is copper through 40H, copper alloy for 350 kcmil and above
  • Bolt and nut of hex design up to 350 kcmil
  • Split-bolt connector made of metallic bronze alloy for use on copper conductors
  • 2/0 AWG stranded conductor range min tap with one max main
  • 500 kcmil to 400 kcmil conductor range for equal main and tap
  • 1 Piece/Pack

Resources

Specification Sheet
