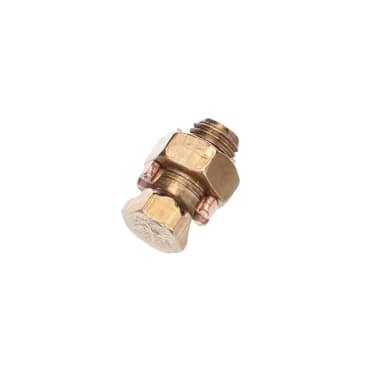

ABB 8H HIGH STRENGTH SPLIT BOLT CONNECTOR 8STR-10SLD
MFR Part #: 8H
SKU #: 1272514
Brand: ABB | Blackburn®
UPC: 783786200023
Blackburn® 8H Type H High Strength Split Bolt Connector, 10 to 8 AWG Solid/Stranded Copper Conductor, 3/8 x 25/32 in Bolt, Bronze Alloy
For splicing, tapping or terminating conductors in power and grounding electrical connection
UL File No. E9809 | CSA Certified
Product Details
Attributes
Features
Resources
Blackburn® 8H Split Bolt Connector, Type H High Strength, Solid/Stranded Copper Conductor, 10 to 8 AWG Conductor, 3/8 x 25/32 in Bolt, Specifications: 0.146 in Split, 1/2 in Hex Nut, Bronze Alloy, Metallic
Bolt Size:
3/8 x 25/32 in
Color:
Metallic
Conductor Size:
10 to 8 AWG
Conductor Type:
Solid/Stranded Copper
Country Of Origin:
Mexico
Material:
Bronze Alloy
Specifications:
0.146 in Split, 1/2 in Hex Nut
Type:
Type H High Strength
- Bolt and nut of high-strength corrosion resistant bronze alloy
- Pressure bar is copper through 40H, copper alloy for 350 kcmil and above
- Bolt and nut of hex design up to 350 kcmil
- Split-bolt connector made of metallic bronze alloy for use on copper conductors
- 14 AWG solid conductor range min tap with one max main
- 8 AWG stranded to 10 AWG solid conductor range for equal main and tap
- 100 Pieces/Pack
Product Details
Blackburn® 8H Split Bolt Connector, Type H High Strength, Solid/Stranded Copper Conductor, 10 to 8 AWG Conductor, 3/8 x 25/32 in Bolt, Specifications: 0.146 in Split, 1/2 in Hex Nut, Bronze Alloy, Metallic
Attributes
Bolt Size: 3/8 x 25/32 in
Color: Metallic
Conductor Size: 10 to 8 AWG
Conductor Type: Solid/Stranded Copper
Country Of Origin: Mexico
Material: Bronze Alloy
Specifications: 0.146 in Split, 1/2 in Hex Nut
Type: Type H High Strength
Features
- Bolt and nut of high-strength corrosion resistant bronze alloy
- Pressure bar is copper through 40H, copper alloy for 350 kcmil and above
- Bolt and nut of hex design up to 350 kcmil
- Split-bolt connector made of metallic bronze alloy for use on copper conductors
- 14 AWG solid conductor range min tap with one max main
- 8 AWG stranded to 10 AWG solid conductor range for equal main and tap
- 100 Pieces/Pack
