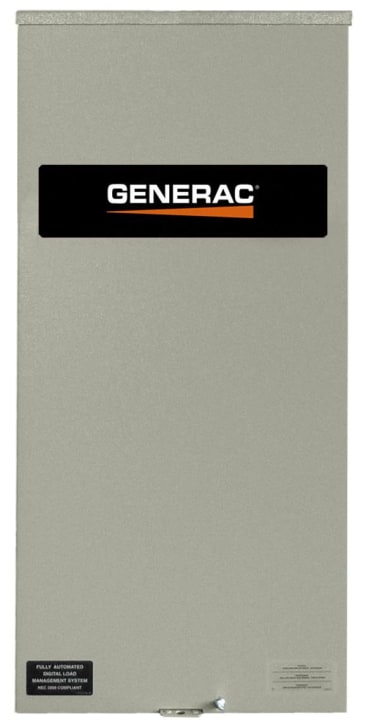

GENERAC RTSN100G3 Image 1

GENERAC RTSN100G3 120/208V 100A 3-PHASE AUTOMATIC TRANSFER SWITCH

MFR Part #: RTSN100G3
SKU #: 1301642
Brand: Generac®
UPC: 696471110234
Generac® RTSN100G3 RTS Automatic Transfer Switch, 120/208 V, 100 A, 3 Phases, NEMA 3R Enclosure
5 Years
cETLus Listed|ISO 9001:2008|NEMA 3R|PROP65

Generac®, RTSN100G3, Transfer Switch, Automatic, Series: RTS, 120/208 V, 100 A, 3 ph, 20 in Width, 24 in Depth, 7.25 in Height, NEMA 3R Enclosure, Aluminum

Product Details

Generac®, RTSN100G3, Transfer Switch, Automatic, Series: RTS, 120/208 V, 100 A, 3 ph, 20 in Width, 24 in Depth, 7.25 in Height, NEMA 3R Enclosure, Aluminum

Attributes

Amperage Rating100 A
Depth24 in
Enclosure TypeNEMA 3R
Height7.25 in
MaterialAluminum
Number of Phases3
TypeAutomatic
Voltage Rating120/208 V
Width20 in
SeriesRTS

Features

  • Generac automatic transfer switches are housed with electrostatically applied and baked powder paint
  • Heavy duty Generac contactor is a UL and CUL recognized device, designed for years of service, the controller at the generator handles all the timing, sensing, exercising functions and transfer commands
  • Through the use of digital power technology (DPM), these switches have the capability to manage up to 4 individual HVAC (24 VAC controlled) loads with no additional hardware
  • When used in tandem with smart management modules, up to 8 more loads can be managed as well, providing the most installation efficient power management options available
  • Cycles power on and off as needed for different appliances
