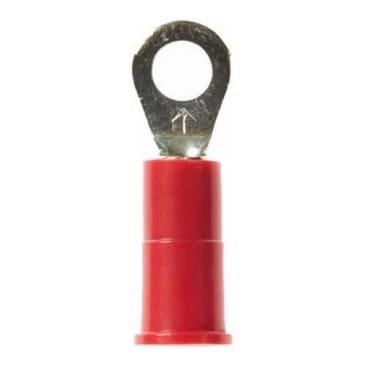

RING VINYL INSULATED HIGHLAND BAG (25/BAG) 3M RV18-6Q

MFR Part #: 7000133682
SKU #: 1159425
Brand: 3M™ | Highland™
UPC: 051128600450
Highland™ 7000133682 Insulated Terminal, 22 to 18 AWG Conductor, 0.8 in L, Butted Seam Barrel, Vinyl, Red
UL Recognized File No. LR22190 | CSA Certified | RoHS Compliant | UL File No. E23438

Highland™, 7000133682, Ring Terminal, Insulated, Series: RV18-6Q, 22 to 18 AWG Conductor, 6 Stud, 0.8 in Length, Butted Seam Barrel, 0.07 in Barrel, Standard Tongue, 0.67 in W Tongue, 600 V, 221 deg F, Plastic, Tin Plated

3MTM HighlandTM Vinyl Insulated Butted Seam Ring Tongue terminals ensures an ideal fit while offering reliable and safe performance. The terminal has a vinyl-insulated, butted-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.

Product Details

Highland™, 7000133682, Ring Terminal, Insulated, Series: RV18-6Q, 22 to 18 AWG Conductor, 6 Stud, 0.8 in Length, Butted Seam Barrel, 0.07 in Barrel, Standard Tongue, 0.67 in W Tongue, 600 V, 221 deg F, Plastic, Tin Plated

3MTM HighlandTM Vinyl Insulated Butted Seam Ring Tongue terminals ensures an ideal fit while offering reliable and safe performance. The terminal has a vinyl-insulated, butted-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.

Attributes

Barrel Size: .07 in
Barrel Type: Butted Seam
Color: Red
Conductor Size: 22 to 18 AWG
Finish: Tin Plated
Length: .8 in
Material: Plastic
Series: RV18-6Q
Specifications: 0.145 in Dia Max Insulation, 0.22 in Clearance
Stud Size: 6
Temperature Rating: 221 deg F
Tongue Size: 0.67 in W
Tongue Type: Standard
Type: Insulated
Voltage Rating: 600 V

Features

  • Vinyl-insulated, butted-seam barrel ensures a secure fit and offers reliable performance
  • Funnel-designed, polyvinyl chloride sleeve offers easy insertion of wires
  • Standard-style ring tongue fits around the stud
  • Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance
  • Withstands a temperature range of -40 to 221 deg F (-40 to 105 deg C)

Resources

Line Drawing
Specification Sheet
