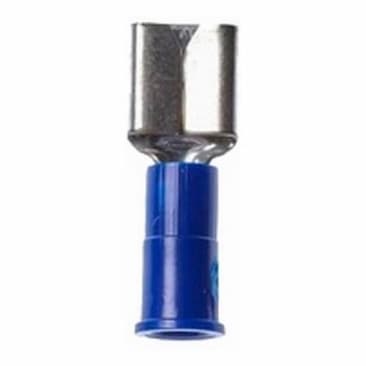

FEMALE DISCONNECT VINYL INSULATED (25/BAG) 3M FDV14-250Q
Product Details
Attributes
Features
Resources
Highland™, 7000133663, Disconnect Terminal, Insulated, 16 to 14 AWG Conductor, 0.25 in W x 0.032 in THK Tab, Butted Seam Barrel, Crimp Terminal, 600/1000 V AC, Specifications: 0.145 in Dia Max Insulation, 0.08 in ID x 0.25 in L Barrel, -40 to 221 deg F, Vinyl, Blue, Tin Plated, 0.87 in L Dimensions, Insulated: Insulated
3M™ Highland™ Vinyl Insulated Butted Seam Female Disconnect has dents and rolled edges to offer superior holding force while allowing for quick and easy disconnect. The terminal has a vinyl-insulated, butted-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Its durable brass construction offers good conductivity and a tin-plated finish resists corrosion.
- Made of durable brass for good conductivity and has corrosion-resistant tin plating
- Free hanging (in-line) mounting
- Mates with 1/4 in wide male tab
- Vinyl-insulated, butted-seam barrel with a funnel-designed, polyvinyl chloride sleeve offers easy insertion of wires
- Dents and rolled edges of this female disconnect terminal offer excellent holding force
- Allows for quick and easy disconnect of wires
Product Details
Highland™, 7000133663, Disconnect Terminal, Insulated, 16 to 14 AWG Conductor, 0.25 in W x 0.032 in THK Tab, Butted Seam Barrel, Crimp Terminal, 600/1000 V AC, Specifications: 0.145 in Dia Max Insulation, 0.08 in ID x 0.25 in L Barrel, -40 to 221 deg F, Vinyl, Blue, Tin Plated, 0.87 in L Dimensions, Insulated: Insulated
3M™ Highland™ Vinyl Insulated Butted Seam Female Disconnect has dents and rolled edges to offer superior holding force while allowing for quick and easy disconnect. The terminal has a vinyl-insulated, butted-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Its durable brass construction offers good conductivity and a tin-plated finish resists corrosion.
Attributes
Features
- Made of durable brass for good conductivity and has corrosion-resistant tin plating
- Free hanging (in-line) mounting
- Mates with 1/4 in wide male tab
- Vinyl-insulated, butted-seam barrel with a funnel-designed, polyvinyl chloride sleeve offers easy insertion of wires
- Dents and rolled edges of this female disconnect terminal offer excellent holding force
- Allows for quick and easy disconnect of wires
