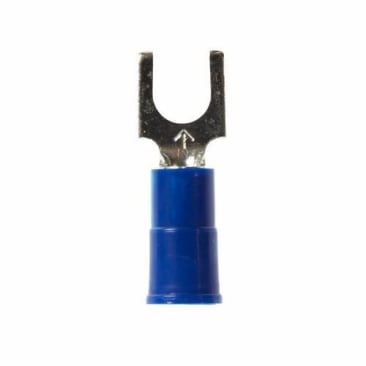

VINYL BLOCK FORK HIGHLAND BAG (25/BAG) 3M BFV14-10Q

MFR Part #: 7000133648
SKU #: 1159377
Brand: 3M™ | Highland™
UPC: 051128599907
Highland™ 7000133648 Insulated Block Fork, 16 to 14 AWG Conductor, 0.85 in L, Butted Seam Barrel, Electrolytic Copper/Vinyl, Blue
Building Wire, Fixtures or Luminaires and Signs Applications
UL File No. E23438 | CSA File No. LR22190

Highland™, 7000133648, Block Fork, Insulated, 16 to 14 AWG Conductor, #10 Stud, 0.85 in Length, Butted Seam Barrel, 0.09 in ID x 0.25 in L Barrel, Fork Tongue, 0.3 in W x 0.03 in THK Tongue, 600 to 1000 V AC, Specifications: 0.17 in Dia Max Insulation, 1/4 in Clearance, -40 to 221 deg F, Electrolytic Copper/Vinyl, Tin Plated, Blue

3M™ Highland™ Vinyl Insulated Butted Seam Block Fork is a lug connection terminal that ensures an ideal fit while offering reliable and safe performance. The terminal has a vinyl-insulated, butted-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.

Product Details

Highland™, 7000133648, Block Fork, Insulated, 16 to 14 AWG Conductor, #10 Stud, 0.85 in Length, Butted Seam Barrel, 0.09 in ID x 0.25 in L Barrel, Fork Tongue, 0.3 in W x 0.03 in THK Tongue, 600 to 1000 V AC, Specifications: 0.17 in Dia Max Insulation, 1/4 in Clearance, -40 to 221 deg F, Electrolytic Copper/Vinyl, Tin Plated, Blue

3M™ Highland™ Vinyl Insulated Butted Seam Block Fork is a lug connection terminal that ensures an ideal fit while offering reliable and safe performance. The terminal has a vinyl-insulated, butted-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.

Attributes

Barrel Size: 0.09 in ID x 0.25 in L
Barrel Type: Butted Seam
Color: Blue
Conductor Size: 16 to 14 AWG
Conductor Type: Stranded Copper
Finish: Tin Plated
Length: .85 in
Material: Electrolytic Copper/Vinyl
Specifications: 0.17 in Dia Max Insulation, 1/4 in Clearance
Stud Size: #10
Temperature Rating: -40 to 221 deg F
Tongue Size: 0.3 in W x 0.03 in THK
Tongue Type: Fork
Type: Block Insulated
Voltage Rating: 600 to 1000 V AC

Features

  • Abrasion and corrosion-resistant, flared, vinyl sleeve insulation ensures easy crimping
  • Crimp termination
  • Free hanging (in-line) mounting
  • Funnel-designed, polyvinyl chloride sleeve offers easy insertion of wires
  • Vinyl-insulated, butted-seam barrel ensures a secure fit and offers reliable performance
  • Suitable for use in a terminal block
