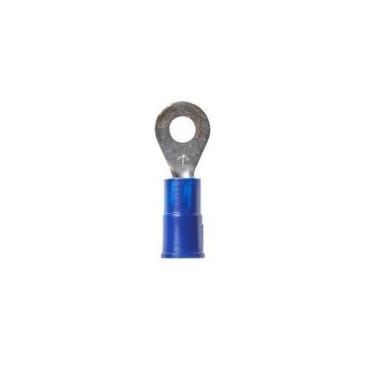

RING VINYL INSULATED HIGHLAND BAG (25/BAG) 3M RV14-6Q

MFR Part #: 7000133678
SKU #: 1159421
Brand: 3M™ | Highland™
UPC: 051128600412
Highland™ 7000133678 RV14-6Q Insulated Ring Terminal, 16 to 14 AWG Conductor, 0.8 in L, Butted Seam Barrel, Vinyl
UL Recognized File No. LR22190 | CSA Certified | RoHS Compliant | UL File No. E23438

Highland™, 7000133678, Ring Terminal, Insulated, Series: RV14-6Q, 16 to 14 AWG Conductor, 6 in Stud, 0.8 in Length, Butted Seam Barrel, 0.25 in Barrel, Standard Tongue, 0.25 in W Tongue, 600 V, 221 deg F, Vinyl

3MTM HighlandTM Vinyl Insulated Butted Seam Ring Tongue terminals ensures an ideal fit while offering reliable and safe performance. The terminal has a vinyl-insulated, butted-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.

Product Details

Highland™, 7000133678, Ring Terminal, Insulated, Series: RV14-6Q, 16 to 14 AWG Conductor, 6 in Stud, 0.8 in Length, Butted Seam Barrel, 0.25 in Barrel, Standard Tongue, 0.25 in W Tongue, 600 V, 221 deg F, Vinyl

3MTM HighlandTM Vinyl Insulated Butted Seam Ring Tongue terminals ensures an ideal fit while offering reliable and safe performance. The terminal has a vinyl-insulated, butted-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.

Attributes

Barrel Size: .25 in
Barrel Type: Butted Seam
Color: Blue
Conductor Size: 16 to 14 AWG
Finish: Tin Plated
Length: .8 in
Material: Vinyl
Series: RV14-6Q
Specifications: 0.17 in Dia Max Insulation, 0.22 in Clearance
Stud Size: 6 in
Temperature Rating: 221 deg F
Tongue Size: 0.25 in W
Tongue Type: Standard
Type: Insulated
Voltage Rating: 600 V

Features

  • Vinyl-insulated, butted-seam barrel ensures a secure fit and offers reliable performance
  • Funnel-designed, polyvinyl chloride sleeve offers easy insertion of wires
  • Standard-style ring tongue fits around the stud
  • Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance
  • Withstands a temperature range of -40 to 221 deg F (-40 to 105 deg C)
