EATON 5BHLE-175E 175A 63KAIC CLASS E SINGLE BARREL FUSE
Product Details
Attributes
Features
Resources

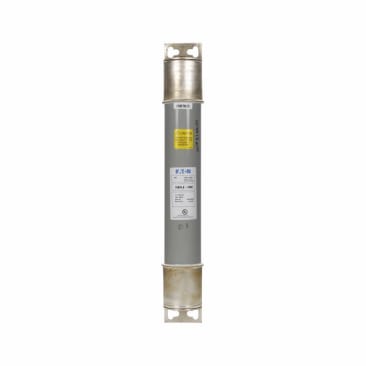

EATON Current Limiting Fuse, Type BHLE E-Rated Medium Voltage 1-Barrel, 175 A, 5.5 kV, 63 kA Interrupt, Class: E, 50/60 Hz Frequency, 600 s Response, Bolted-On Mounting, 15.9 in L x 3 in W x 3 in H Body
Our general purpose and full range E-Rated, current-limiting medium voltage fuses are designed for feeder circuit, switchgear and transformer protection. Construction types include ferrule, bolt-on and clip lock, with special application fuses available for use with AMPGARD® motor starters. The ferrule fuses are available in a range of sizes to meet standard industry specifications. Additionally, fuseclips are available as well as mountings in disconnect and non-disconnect versions with insulation material options to achieve various voltage BIL ratings. All of our E-Rated medium voltage fuses include open fuse indication with available microswitch for remote indication to speed troubleshooting and indoor/outdoor ratings are available on select fuses.
- Current limiting e-rated medium voltage fuses are defined by their melting time-current characteristic that permit their electrical interchangeability with other fuses of the same e-rating
- E-rated fuses must have a defined current response time specified by ANSI C37.46
- E-rated fuses greater than 100 A must melt in 600 s at an RMS current within the range of 220 to 264% of the fuse's nameplate current rating
- E-rated fuses are physically dimensioned for easy installation in existing hardware
- Current limiting fuses provide positive interruption even on low fault currents
- The fuse limits the magnitude of electro mechanical stresses in the protected apparatus
- Open fuse indicator speeds trouble shooting by providing a positive visual indication of fuse operation
