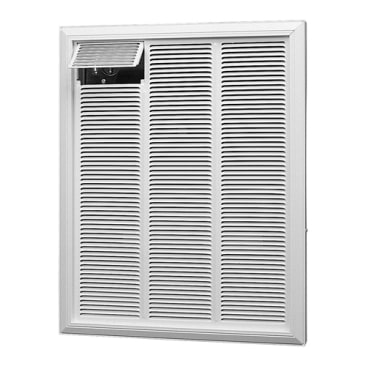

3000/2250W 240/208V WALL INS WHITE DIMPLEX RFI830D31W
MFR Part #: RFI830D31W
SKU #: 0735705
Brand: Dimplex
UPC: 781052029842
Dimplex RFI830D31W Fan Forced Commercial Heater, 3/2.25 kW, 208/240 V AC
Built-In Double Pole Thermostat
Vestibules, Entranceways, Stairwells and Kiosks
cULus Listed
Product Details
Attributes
Features
Resources
Dimplex Heater, Fan Forced Commercial, Series: RFI, 208/240 V AC, 3/2.25 kW, 160 cfm, Recessed/Surface/Ceiling/Wall Mount, Steel, White, Polyester Epoxy Powder Coated, 16-3/4 in W x 5-1/4 in D x 21-1/2 in H
Color:White
Dimensions:16-3/4 in W x 5-1/4 in D x 21-1/2 in H
Finish:Polyester Epoxy Powder Coated
Flow Rate:160 cfm
Material:Steel
Mounting Type:Recessed/Surface/Ceiling/Wall
Power Rating:3/2.25 kW
Series:RFI
Type:Fan Forced Commercial
Voltage Rating:208/240 V AC
- Solutions for maintaining comfort in areas subject to cold drafts, such as vestibules, stairwells, etc
- Quick response, high-output fan-forced heater
- Automatic fan delay utilizes residual heat when unit cycles off
- All models offer recessed or surface mounting, ceiling or wall
- Exclusive aesthetically pleasing front-panel trim
- Access door can be locked for tamperproof applications
- The RFI/RFV/RFF wall heater has a nickel chromium resistance wire heating element within a steel sheath
- Spiral steel fins are firmly brazed to the surface to provide excellent heat transfer
- The fan motor is totally enclosed and factory-lubricated complete with a black anodized 5 blade mixed flow aluminum fan
- The fan delay is a bi-metallic snap-action type
- Use low voltage relay kits and suitable wall mount thermostat for remote temperature control
Product Details
Dimplex Heater, Fan Forced Commercial, Series: RFI, 208/240 V AC, 3/2.25 kW, 160 cfm, Recessed/Surface/Ceiling/Wall Mount, Steel, White, Polyester Epoxy Powder Coated, 16-3/4 in W x 5-1/4 in D x 21-1/2 in H
Attributes
Color: White
Dimensions: 16-3/4 in W x 5-1/4 in D x 21-1/2 in H
Finish: Polyester Epoxy Powder Coated
Flow Rate: 160 cfm
Material: Steel
Mounting Type: Recessed/Surface/Ceiling/Wall
Power Rating: 3/2.25 kW
Series: RFI
Type: Fan Forced Commercial
Voltage Rating: 208/240 V AC
Features
- Solutions for maintaining comfort in areas subject to cold drafts, such as vestibules, stairwells, etc
- Quick response, high-output fan-forced heater
- Automatic fan delay utilizes residual heat when unit cycles off
- All models offer recessed or surface mounting, ceiling or wall
- Exclusive aesthetically pleasing front-panel trim
- Access door can be locked for tamperproof applications
- The RFI/RFV/RFF wall heater has a nickel chromium resistance wire heating element within a steel sheath
- Spiral steel fins are firmly brazed to the surface to provide excellent heat transfer
- The fan motor is totally enclosed and factory-lubricated complete with a black anodized 5 blade mixed flow aluminum fan
- The fan delay is a bi-metallic snap-action type
- Use low voltage relay kits and suitable wall mount thermostat for remote temperature control
