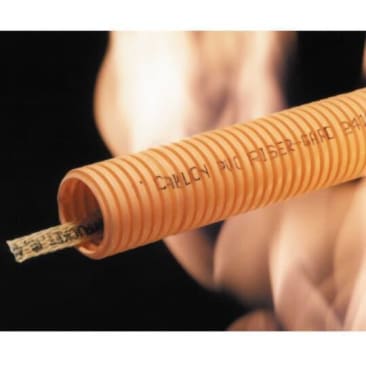

CARLON DJ4X1C-100 Image 1

CARLON DJ4X1C-100 2IN FT4 RATED RISER GUARD FLEX RACEWAY

MFR Part #: DJ4X1C-100
SKU #: 1085233
Brand: ABB | Carlon®
UPC: 791207203546
Carlon® Riser-Gard™ DJ4X1C-100 Corrugated Non-Metallic Standard Wall Flexible Raceway Conduit, 2 in Trade, 2 in ID x 2.38 in OD, 100 ft L, PVC
Used in vertical runs in a shaft or between floors and areas other than the plenum, riser and general purpose applications
UL Listed File No. E151168

Carlon® Riser-Gard™ Flexible Raceway Conduit, Corrugated Non-Metallic Standard Wall, 2 in Trade, 2 in ID, 2.38 in OD, 100 ft Length, 0.08 in Thickness, 12 in Bend Radius, -4 to 104 deg F, PVC, Orange

Riser-Gard™ is a non-metallic flexible raceway for use in riser and general purpose applications. Riser-Gard™ is available with tape pre-installed. Riser-Gard™ is listed for riser applications or optical fiber/telecommunication raceways. Riser-Gard™ is listed for riser, general purpose and other cabling optical fiber/telecommunication applications. Riser-Gard™ is suitable for use in vertical runs in shaft or between floors, as well as areas other than the plenum.

Product Details

Carlon® Riser-Gard™ Flexible Raceway Conduit, Corrugated Non-Metallic Standard Wall, 2 in Trade, 2 in ID, 2.38 in OD, 100 ft Length, 0.08 in Thickness, 12 in Bend Radius, -4 to 104 deg F, PVC, Orange

Riser-Gard™ is a non-metallic flexible raceway for use in riser and general purpose applications. Riser-Gard™ is available with tape pre-installed. Riser-Gard™ is listed for riser applications or optical fiber/telecommunication raceways. Riser-Gard™ is listed for riser, general purpose and other cabling optical fiber/telecommunication applications. Riser-Gard™ is suitable for use in vertical runs in shaft or between floors, as well as areas other than the plenum.

Attributes

Bend Radius: 12 in
Color: Orange
Country Of Origin: US
Inside Diameter: 2 in
Length: 100 ft
Material: PVC
Outside Diameter: 2.38 in
Temperature Rating: -4 to 104 deg F
Thickness: .08 in
Trade Size: 2 in
Type: Corrugated Standard Wall
Wall Thickness: .08 in

Features

  • Riser-Gard® is also suitable for direct burial
  • Not approved for exposed applications
  • Pull tape can be factory pre-installed in 1 thorough 3 in
  • Outside diameters meet IPS dimensions
  • Footage sequentially marked

Resources

Specification Sheet
