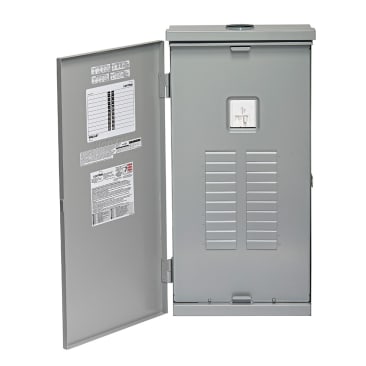

LEVITON LR210-BDC 100A 20-SPACE NEMA3R OUTDOOR LOAD CENTER WITH MAIN BREAKER
MFR Part #: LR210-BDC
SKU #: 1262345
Brand: Leviton®
UPC: 07847757824
Leviton® LR210-BDC LP210 Load Center, 120/240 VAC, 100 A, 22 kA Interrupt
10 Years
Easy to install
CSA C22.2 No. 29-15 | UL 67: File E480408 | UL 50 | UL 50E | UL 869A
Product Details
Attributes
Features
Resources
Leviton®, LR210-BDC, Load Center, Series: LP210, 120/240 VAC, 100 A, 22 kA Interrupt, 20 Circuits, Plug-On Breaker Mounting, 3-Wire Wiring Configuration, 225 A Bus, 20 Spaces, 4 to 2/0 AWG Ground/3 AWG to 300 kcmil Supply Wire, Surface Mounting, NEMA 1 Enclosure, Galvanized Steel Housing Material, 30 in H x 15 in W x 4.4 in D Dimensions
Amperage Rating:
100 A
Breaker Mounting:
Plug-On
Bus Rating:
225 A
Dimensions:
30 in H x 15 in W x 4.4 in D
Enclosure Type:
NEMA 1
Housing Material:
Galvanized Steel
Interrupt Rating:
22 kA
Mounting Type:
Surface
Number of Circuits:
20
Number of Spaces:
20
Series:
LP210
Voltage Rating:
120/240 VAC
Wire Size:
4 to 2/0 AWG Ground/3 AWG to 300 kcmil Supply
Wiring Configuration:
3-Wire
- Terminate all hot and neutral wires at custom lugs in the panel, not at the circuit breaker
- The entire panel can be wired at rough-in without circuit breakers installed
- At final installation, simply plug-on the circuit breaker
- No pigtails on circuit breakers
- Copper bus is standard
- Leviton GFCI, AFCI and Dual Function circuit breakers feature our patented reset lockout and will not reset if ground- or arc-fault protection is compromised
- Intuitive LEDs help communicate trip condition and type of fault (AF/GF) and remain illuminated even when the circuit breaker is in the tripped state
Product Details
Leviton®, LR210-BDC, Load Center, Series: LP210, 120/240 VAC, 100 A, 22 kA Interrupt, 20 Circuits, Plug-On Breaker Mounting, 3-Wire Wiring Configuration, 225 A Bus, 20 Spaces, 4 to 2/0 AWG Ground/3 AWG to 300 kcmil Supply Wire, Surface Mounting, NEMA 1 Enclosure, Galvanized Steel Housing Material, 30 in H x 15 in W x 4.4 in D Dimensions
Attributes
Amperage Rating: 100 A
Breaker Mounting: Plug-On
Bus Rating: 225 A
Dimensions: 30 in H x 15 in W x 4.4 in D
Enclosure Type: NEMA 1
Housing Material: Galvanized Steel
Interrupt Rating: 22 kA
Mounting Type: Surface
Number of Circuits: 20
Number of Spaces: 20
Series: LP210
Voltage Rating: 120/240 VAC
Wire Size: 4 to 2/0 AWG Ground/3 AWG to 300 kcmil Supply
Wiring Configuration: 3-Wire
Features
- Terminate all hot and neutral wires at custom lugs in the panel, not at the circuit breaker
- The entire panel can be wired at rough-in without circuit breakers installed
- At final installation, simply plug-on the circuit breaker
- No pigtails on circuit breakers
- Copper bus is standard
- Leviton GFCI, AFCI and Dual Function circuit breakers feature our patented reset lockout and will not reset if ground- or arc-fault protection is compromised
- Intuitive LEDs help communicate trip condition and type of fault (AF/GF) and remain illuminated even when the circuit breaker is in the tripped state
