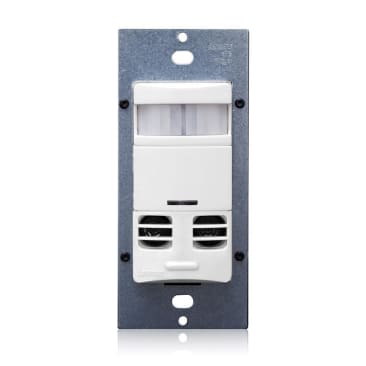

LEVITON OSSMT-MDW DECORA 120/277V MULTI-TECH 2400SQFT WALL SWITCH OCCUPENCY SENSOR WITH NEUTRAL WHITE
MFR Part #: OSSMT-MDW
SKU #: 1191463
Brand: Leviton®
UPC: 07847727937
Leviton® Decora® OSSMT-MDW 1-Pole Field Configurable Self Adjusting Occupancy Sensor With Neutral Wire, 120/230/277/347 VAC, Multi-Technology/PIR/Ultrasonic Sensor, 2400 sq-ft Coverage, 180 deg Viewing, Wall Mount
Retrofit, Private, Executive Offices, Conference Rooms, Storage Areas, Restrooms, Classrooms, Lounges, Training Areas, Multi-Location Switching and Commercial Applications
UL/cUL Listed | CSA Certified | CEC Title 24 Compliant | FCC Approved | NAFTA CF434
Product Details
Attributes
Features
Resources
Leviton® Decora® Occupancy Sensor, 1-Pole Field Configurable Self Adjusting, 120/230/277/347 VAC, 190/270/350/390 mW, Multi-Technology/PIR/Ultrasonic Sensor, 2400 sq-ft Coverage, 180 deg Viewing, 30 s to 30 min Delay, Fluorescent/Incandescent/Tungsten Lamp, 50/60 Hz Response, Manual On/Automatic Off Control Output, Wall Mount, 0 to 40 deg C, White, 46 in H x 1.75 in W x 1.85 in D
Leviton® OSSMT multi-technology Decora® wall switch occupancy sensor is used to provide automatic lighting control for energy savings and convenience in a variety of commercial applications.
Color:
White
Control Output:
Manual On/Automatic Off
Country Of Origin:
China
Coverage:
2400 sq-ft
Dimensions:
46 in H x 1.75 in W x 1.85 in D
Lamp Type:
Fluorescent/Incandescent/Tungsten
Mounting Type:
Wall
Power Rating:
190/270/350/390 mW
Response Frequency:
50/60 Hz
Sensor Type:
Multi-Technology/PIR/Ultrasonic
Temperature Rating:
0 to 40 deg C
Time Delay:
30 s to 30 min
Type:
1-Pole Field Configurable Self Adjusting
Viewing Angle:
180 deg
Voltage Rating:
120/230/277/347 VAC
- Fast, simple installation fits in a standard wallbox and replaces a 1-pole wall switch
- Sensor can be ganged together with other units in a multiple-switch wallplate
- Low profile design eliminates obtrusive scanning-device look
- Convenient pushbutton provides manual ON/OFF light switching at any time
- Segmented fresnel lens provides optimum sensitivity and performance designed with an extensive minor motion area where even slight body movements will be detected
- Vandal resistant PIR lens
- Adjustable horizontal field-of-view (PIR may be adjusted between 180 and 60 deg of arc by using integral blinders located on either side of the lens), no masking required
- Manual ON/auto OFF mode for installations where manual ON switching is required but auto OFF switching is still desired for CEC title T24 energy savings
- To comply with CED title 24, LED indicator light flashes when sensor detects motion to verify detection is active, green flashes for ultrasonic, red flashes for PIR
- The delayed OFF time is preset at 30 min in the auto-adapting mode, the LED will flash when the adjusting knob is set to the indicated time value
- Ambient light recognition integrated light sensor prevents lights from turning ON when the room is adequately illuminated by natural light
- Self-adaptive technology callbacks for adjustment are eliminated, time delay and sensitivity settings are continually adjusted to occupant patterns of use in auto adapt mode
- Exclusive Walk-through feature provides increased energy savings by not leaving the lights ON for an extended period after only momentary occupancy
- Vacancy confirmation when the time out expires and the relays turns OFF, a 30 sec (OSSMT-G) or 40 sec (OSSMT-M) vacancy confirmation exists to turn the relays back ON
- False detection circuitry
- Small motion sensitivity ultrasonic technology provides excellent minor motion sensitivity
- Presentation mode feature for slide or film presentations allows pushbuttons to turn lights OFF and keep them OFF while the room is occupied
- Exclusive Leviton® high inrush stability (HIS) circuitry, specifically designed to handle today's high inrush electronic ballast loads and offer unmatched durability and service
- True zero cross relay switches at the zero crossing point of the AC power curve to ensure maximum contactor life and compatibility with electronic ballasts
- Elegant Decora® wallplates complement any interior for sleek aesthetics, uses Decora® wallplates and coordinates with Leviton® popular line of Decora® wiring devices
Product Details
Leviton® Decora® Occupancy Sensor, 1-Pole Field Configurable Self Adjusting, 120/230/277/347 VAC, 190/270/350/390 mW, Multi-Technology/PIR/Ultrasonic Sensor, 2400 sq-ft Coverage, 180 deg Viewing, 30 s to 30 min Delay, Fluorescent/Incandescent/Tungsten Lamp, 50/60 Hz Response, Manual On/Automatic Off Control Output, Wall Mount, 0 to 40 deg C, White, 46 in H x 1.75 in W x 1.85 in D
Leviton® OSSMT multi-technology Decora® wall switch occupancy sensor is used to provide automatic lighting control for energy savings and convenience in a variety of commercial applications.
Attributes
Color: White
Control Output: Manual On/Automatic Off
Country Of Origin: China
Coverage: 2400 sq-ft
Dimensions: 46 in H x 1.75 in W x 1.85 in D
Lamp Type: Fluorescent/Incandescent/Tungsten
Mounting Type: Wall
Power Rating: 190/270/350/390 mW
Response Frequency: 50/60 Hz
Sensor Type: Multi-Technology/PIR/Ultrasonic
Temperature Rating: 0 to 40 deg C
Time Delay: 30 s to 30 min
Type: 1-Pole Field Configurable Self Adjusting
Viewing Angle: 180 deg
Voltage Rating: 120/230/277/347 VAC
Features
- Fast, simple installation fits in a standard wallbox and replaces a 1-pole wall switch
- Sensor can be ganged together with other units in a multiple-switch wallplate
- Low profile design eliminates obtrusive scanning-device look
- Convenient pushbutton provides manual ON/OFF light switching at any time
- Segmented fresnel lens provides optimum sensitivity and performance designed with an extensive minor motion area where even slight body movements will be detected
- Vandal resistant PIR lens
- Adjustable horizontal field-of-view (PIR may be adjusted between 180 and 60 deg of arc by using integral blinders located on either side of the lens), no masking required
- Manual ON/auto OFF mode for installations where manual ON switching is required but auto OFF switching is still desired for CEC title T24 energy savings
- To comply with CED title 24, LED indicator light flashes when sensor detects motion to verify detection is active, green flashes for ultrasonic, red flashes for PIR
- The delayed OFF time is preset at 30 min in the auto-adapting mode, the LED will flash when the adjusting knob is set to the indicated time value
- Ambient light recognition integrated light sensor prevents lights from turning ON when the room is adequately illuminated by natural light
- Self-adaptive technology callbacks for adjustment are eliminated, time delay and sensitivity settings are continually adjusted to occupant patterns of use in auto adapt mode
- Exclusive Walk-through feature provides increased energy savings by not leaving the lights ON for an extended period after only momentary occupancy
- Vacancy confirmation when the time out expires and the relays turns OFF, a 30 sec (OSSMT-G) or 40 sec (OSSMT-M) vacancy confirmation exists to turn the relays back ON
- False detection circuitry
- Small motion sensitivity ultrasonic technology provides excellent minor motion sensitivity
- Presentation mode feature for slide or film presentations allows pushbuttons to turn lights OFF and keep them OFF while the room is occupied
- Exclusive Leviton® high inrush stability (HIS) circuitry, specifically designed to handle today's high inrush electronic ballast loads and offer unmatched durability and service
- True zero cross relay switches at the zero crossing point of the AC power curve to ensure maximum contactor life and compatibility with electronic ballasts
- Elegant Decora® wallplates complement any interior for sleek aesthetics, uses Decora® wallplates and coordinates with Leviton® popular line of Decora® wiring devices
