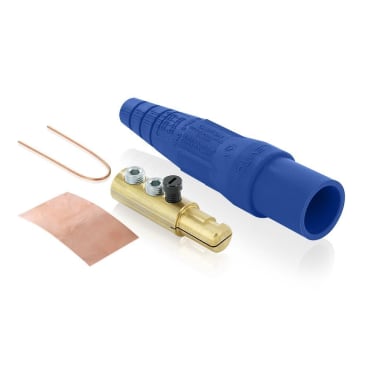

LEVITON 16D44-UB Image 1

LEVITON 16D44-UB #6-2 AWG TAPER NOSE NEMA3R MALE DETACHABLE PLUG BLUE

MFR Part #: 16D44-UB
SKU #: 1135309
Brand: Leviton®
UPC: 078477720943
Leviton® Rhino-Hide® 16D44-UB 1-Pole Cam Type Taper Nose While-in-Use Detachable Male Plug, 12 to 24 VAC/VDC, 190 A, 6 to 2 AWG Wire, Double Set Screw, NEMA 3R
Contact, Insulator
Industrial Applications
UL 1691 File No. E13399 | CSA File No. 152105

Leviton® Rhino-Hide® Detachable Male Plug, 1-Pole Cam Type Taper Nose While-in-Use, Series: 16 Series, 12 to 24 VAC/VDC, 190 A, 6 to 2 AWG Wire, Double Set Screw, Brass Contact, Santoprene TPV Housing, NEMA 3R, Threaded Mount, Blue, 1.72 in Dia x 7.01 in L

Rhino-Hide® single pole cam type connectors are designed for easy assembly and disassembly without special tools. A thermoplastic screw is used to tightly secure the contact inside the insulating sleeve, making assembly, disassembly and field repairs effortless. The plugs use plastic locking and reinforcement rings molded into insulating sleeves and receptacles ensuring the integrity of the connection. Under severe stress and load conditions, these rings will not melt, break or crack.

Product Details

Leviton® Rhino-Hide® Detachable Male Plug, 1-Pole Cam Type Taper Nose While-in-Use, Series: 16 Series, 12 to 24 VAC/VDC, 190 A, 6 to 2 AWG Wire, Double Set Screw, Brass Contact, Santoprene TPV Housing, NEMA 3R, Threaded Mount, Blue, 1.72 in Dia x 7.01 in L

Rhino-Hide® single pole cam type connectors are designed for easy assembly and disassembly without special tools. A thermoplastic screw is used to tightly secure the contact inside the insulating sleeve, making assembly, disassembly and field repairs effortless. The plugs use plastic locking and reinforcement rings molded into insulating sleeves and receptacles ensuring the integrity of the connection. Under severe stress and load conditions, these rings will not melt, break or crack.

Attributes

Amperage Rating: 190 A
Color: Blue
Connection Type: Double Set Screw
Contact Material: Brass
Country Of Origin: Mexico
Dimensions: 1.72 in Dia x 7.01 in L
Housing Material: Santoprene TPV
Mounting Type: Threaded
NEMA Rating: NEMA 3R
Series: 16 Series
Type: 1-Pole Cam Type Taper Nose While-in-Use
Voltage Rating: 12 to 24 VAC/VDC
Wire Size: 6 to 2 AWG

Features

  • Reusable sleeves and contacts for easy assembly and disassembly without special tools
  • Self-compensating for wear
  • Color coded insulating sleeves provide fast and easy phase identification
