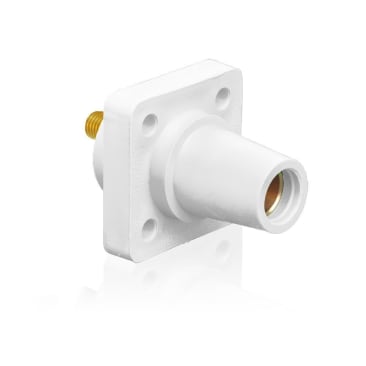

LEVITON 16R24-UW 3/4 #2-4/0 AWG TAPER NOSE FEMALE PANEL RECEPTACLE STUD WHITE
Product Details
Attributes
Features
Resources
Leviton® Rhino-Hide® Single Pole Receptacle, 90 deg Cam Type Female Taper Nose, Series: 16 Series, 600 VAC, 400 A, 2 to 4/0 AWG Wire, Threaded/Stud, Brass Contact, Santroprene TPV Housing, NEMA 3R, Panel Mount, 3/4 in L Threaded/Stud, 86 deg F, White, 2.28 in H x 2.28 in W
Rhino-Hide® single pole cam type receptacles are tough and reliable. They feature a UV stabilized high performance TPV insulator that resists cracking and color fading and a positive vibration-proof connection. They are available in 8 standard colors for easy phase identification.
- Intermateable and compatible with competitive cam type products can be retrofitted to existing locations and power distribution systems
- Shatter and crack proof, high durometer thermoplastic elastomer (TPV) or neoprene rubber
- Color coded insulating sleeves for fast and easy phase identification
- Self-compensating for wear slit and cam in male contact provides spring action for longer usage
- Quick connect/disconnect twist and pull provided by double cam male and cam button in female
- High conductivity positive, vibration proof connection provided by double cam design
- Wide range of applications - usable with a wide range of cable and amperage ratings
Product Details
Leviton® Rhino-Hide® Single Pole Receptacle, 90 deg Cam Type Female Taper Nose, Series: 16 Series, 600 VAC, 400 A, 2 to 4/0 AWG Wire, Threaded/Stud, Brass Contact, Santroprene TPV Housing, NEMA 3R, Panel Mount, 3/4 in L Threaded/Stud, 86 deg F, White, 2.28 in H x 2.28 in W
Rhino-Hide® single pole cam type receptacles are tough and reliable. They feature a UV stabilized high performance TPV insulator that resists cracking and color fading and a positive vibration-proof connection. They are available in 8 standard colors for easy phase identification.
Attributes
Features
- Intermateable and compatible with competitive cam type products can be retrofitted to existing locations and power distribution systems
- Shatter and crack proof, high durometer thermoplastic elastomer (TPV) or neoprene rubber
- Color coded insulating sleeves for fast and easy phase identification
- Self-compensating for wear slit and cam in male contact provides spring action for longer usage
- Quick connect/disconnect twist and pull provided by double cam male and cam button in female
- High conductivity positive, vibration proof connection provided by double cam design
- Wide range of applications - usable with a wide range of cable and amperage ratings
