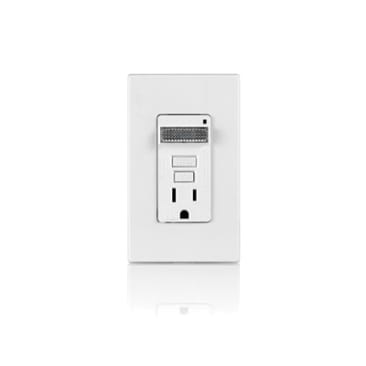

BX WH COMBO GFCI/LED GUIDE LIGHT LEVITON X7591-W (7591-W)
Product Details
Attributes
Features
Leviton® SmartlockPro® Combination GFCI Device, 125 V AC, 15 A, 1 hp, 2 Pole, 3 Wires, NEMA 5-20R NEMA Rating, Residential Grade, -35 to 66 deg C, Back/Side Wire Terminal, Polycarbonate, White, 4.21 in H x 1.7 in W Dimensions
Leviton is the leading manufacturer of Ground Fault Circuit Interrupters (GFCIs) in the electrical industry. Our renowned SmartlockPro brand offers a wide variety of Spec Grade and Hospital Grade GFCIs to protect people from electrical shock in homes, offices hospitals, schools and outdoors. Built with a patented reset lockout feature that blocks the Reset button if GFCI protection has been compromised, the GFCIs meet the latest NEC and UL requirements. You'll find smart choices for every need, including tamper-resistant, weather-resistant, hospital grade, GFCI/switch or GFCI/guide light and pilot light combinations, as well as easy-install slim versions and time-saving Lev-Lok GFCIs. SmartlockPro GFCI protection teams with an LED guide light for safety in the dark. This combination is ideal for installation in home and hotel bathrooms. A photo sensor turns the energy-efficient, long-life LED ON and OFF.
- Manual control of pilot light using the test/reset buttons
- Long lasting, energy efficient LEDs with 20 years life expectancy - no bulbs to replace
- Power indicator illuminates when load is on
- Automatically test the GFCI every time the reset button is pushed in, the GFCI will not reset if the GFCI circuit is not functioning properly
- By blocking reset of the GFCI if protection has been compromised, SmartlockPro® reduces the possibility of end-users incorrectly assuming that a reset GFCI outlet is providing ground fault protection when it actually is not
- A line-load reversal diagnostic feature is provided which prevents the AFCI from being reset and stops power from being fed to the AFCI receptacle face or through to downstream devices a green LED indicator on the AFCI's face also illuminates to alert the installer to a line-load wiring reversal when the device is in the tripped state
- The trip latch mechanism in SmartlockPro® GFCIs is a one-piece "T" design for efficient operation
- Trip threshold meets or exceeds UL requirements
- Improved immunity to high-frequency noise reduces nuisance tripping
- Advanced electronics design provides superior resistance to electrical surges and over-voltages
- Expanded wiring options with nine back-wire holes, two for each line and load connection plus one for ground with an internal clamp
- Silver alloy contacts
- Compatible with all Decora® devices and wallplates
- Monochromatic
- Max 30 deg C after 50 cycles OL at 150% rated current temperature rise
- 10 kA short circuit current rating
- Flammability rated UL94 V-2
- Nylon face
- Plated steel terminal and grounding screw
- Zinc plated steel yoke
Product Details
Leviton® SmartlockPro® Combination GFCI Device, 125 V AC, 15 A, 1 hp, 2 Pole, 3 Wires, NEMA 5-20R NEMA Rating, Residential Grade, -35 to 66 deg C, Back/Side Wire Terminal, Polycarbonate, White, 4.21 in H x 1.7 in W Dimensions
Leviton is the leading manufacturer of Ground Fault Circuit Interrupters (GFCIs) in the electrical industry. Our renowned SmartlockPro brand offers a wide variety of Spec Grade and Hospital Grade GFCIs to protect people from electrical shock in homes, offices hospitals, schools and outdoors. Built with a patented reset lockout feature that blocks the Reset button if GFCI protection has been compromised, the GFCIs meet the latest NEC and UL requirements. You'll find smart choices for every need, including tamper-resistant, weather-resistant, hospital grade, GFCI/switch or GFCI/guide light and pilot light combinations, as well as easy-install slim versions and time-saving Lev-Lok GFCIs. SmartlockPro GFCI protection teams with an LED guide light for safety in the dark. This combination is ideal for installation in home and hotel bathrooms. A photo sensor turns the energy-efficient, long-life LED ON and OFF.
Attributes
Features
- Manual control of pilot light using the test/reset buttons
- Long lasting, energy efficient LEDs with 20 years life expectancy - no bulbs to replace
- Power indicator illuminates when load is on
- Automatically test the GFCI every time the reset button is pushed in, the GFCI will not reset if the GFCI circuit is not functioning properly
- By blocking reset of the GFCI if protection has been compromised, SmartlockPro® reduces the possibility of end-users incorrectly assuming that a reset GFCI outlet is providing ground fault protection when it actually is not
- A line-load reversal diagnostic feature is provided which prevents the AFCI from being reset and stops power from being fed to the AFCI receptacle face or through to downstream devices a green LED indicator on the AFCI's face also illuminates to alert the installer to a line-load wiring reversal when the device is in the tripped state
- The trip latch mechanism in SmartlockPro® GFCIs is a one-piece "T" design for efficient operation
- Trip threshold meets or exceeds UL requirements
- Improved immunity to high-frequency noise reduces nuisance tripping
- Advanced electronics design provides superior resistance to electrical surges and over-voltages
- Expanded wiring options with nine back-wire holes, two for each line and load connection plus one for ground with an internal clamp
- Silver alloy contacts
- Compatible with all Decora® devices and wallplates
- Monochromatic
- Max 30 deg C after 50 cycles OL at 150% rated current temperature rise
- 10 kA short circuit current rating
- Flammability rated UL94 V-2
- Nylon face
- Plated steel terminal and grounding screw
- Zinc plated steel yoke
