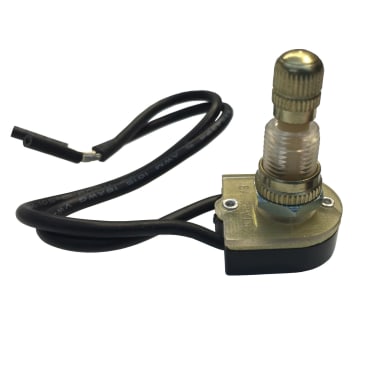

GARDNER BENDER GSW-61 BRASS ROTARY SPST O/F (1/CARD)

MFR Part #: GSW-61
SKU #: 0731323
Brand: GB®
UPC: 032076890612
Gardner Bender GSW-61 2-Terminal Rotary Switch, 125/250 V AC, 3/6 A, SPST Contact
Fan, Lighting, Entertainment Systems, Electrical Equipment, Industrial Control, Musical Instrument Controls, Auto and Marine Applications
CSA Certified | UL Listed

Gardner Bender Rotary Switch, 2-Terminal, 125/250 V AC, 3/6 A, SPST Contact Configuration, Wire Lead Terminal, Brass, 1.537 in L x 0.788 in W Dimensions

The Gardner Bender 6/3 A rotary switch features a brass knob to highlight your decor. The switch is compatible with a 13/32 in mounting hole and is ideal for use with lamps or other light duty applications. This switch offers 1-pole, 1-throw (SPST) on-off circuitry and has 6 in 18 AWG wire leads for installation.

Product Details

Gardner Bender Rotary Switch, 2-Terminal, 125/250 V AC, 3/6 A, SPST Contact Configuration, Wire Lead Terminal, Brass, 1.537 in L x 0.788 in W Dimensions

The Gardner Bender 6/3 A rotary switch features a brass knob to highlight your decor. The switch is compatible with a 13/32 in mounting hole and is ideal for use with lamps or other light duty applications. This switch offers 1-pole, 1-throw (SPST) on-off circuitry and has 6 in 18 AWG wire leads for installation.

Attributes

Amperage Rating: 3/6 A
Color: Brass
Country Of Origin: Taiwan
Dimensions: 1.537 in L x 0.788 in W
Terminal Type: Wire Lead
Type: 2-Terminal
Voltage Rating: 125/250 V AC

Features

  • For use in lamps or other light duty applications
  • 6 in 18 AWG wire leads
  • Brass finish, rotary knob will complement your decor
  • Compatible with a 13/32 in mounting hole
  • Single or three position switches
  • Mounts in standard 1/2 in diameter hole
  • 3/8-27 nut size
  • 6 A at 125 VAC, 3 A at 250 VAC, 6 A at 28 VDC amperage rating

Resources

Specification Sheet
