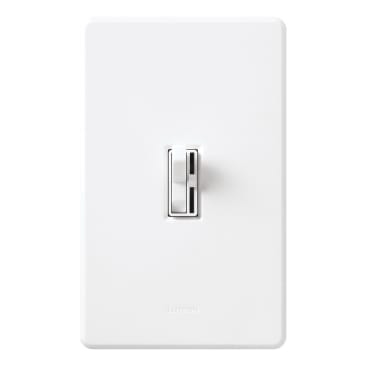

LUTRON AYCL-153P-WH Image 1

LUTRON AYCL-153P-WH ARIADNI 1P/3W LED/CFL 120V DIMMER

MFR Part #: AYCL-153P-WH
SKU #: 1243595
Brand: Lutron®
UPC: 027557825948
Lutron® AYCL-153P-WH Ariadni® 3-Way Traditional Style Dimmer Switch, 120 VAC, 1 Poles, Slide-to-Bright/Dim Operation, White
1 year Limited
Indoor, Commercial and Residential Applications
UL Listed | CSA Certified | UL 1472 | CSA C22.2 File No. 184.1 | NOM Certified

Lutron®, AYCL-153P-WH, Dimmer Switch, 3-Way Traditional Style, Series: Ariadni®, 120 VAC, 150/600 W Power, 60 Hz Frequency, 1 Pole, CFL/Halogen/Incandescent/LED Lamp, Preset Start, Operation Mode: Slide-to-Bright/Dim, Toggle Control, Wall Mounting, Push-In/Screw Terminal, 0 to 40 deg C, Plastic, White, 4.6 in H x 2.86 in W x 0.23 in D Dimensions

These Lutron® dimmers are designed to replace or match your traditional style switches. Save energy and extend bulb life with the Ariadni® easy to use toggle switch and small slide dimmer. Designed with a shallow 1 in D back cover for easy installation, Ariadni® works with your existing traditional multi-gang wallplates.

Product Details

Lutron®, AYCL-153P-WH, Dimmer Switch, 3-Way Traditional Style, Series: Ariadni®, 120 VAC, 150/600 W Power, 60 Hz Frequency, 1 Pole, CFL/Halogen/Incandescent/LED Lamp, Preset Start, Operation Mode: Slide-to-Bright/Dim, Toggle Control, Wall Mounting, Push-In/Screw Terminal, 0 to 40 deg C, Plastic, White, 4.6 in H x 2.86 in W x 0.23 in D Dimensions

These Lutron® dimmers are designed to replace or match your traditional style switches. Save energy and extend bulb life with the Ariadni® easy to use toggle switch and small slide dimmer. Designed with a shallow 1 in D back cover for easy installation, Ariadni® works with your existing traditional multi-gang wallplates.

Attributes

ColorWhite
ControlToggle
Country Of OriginMexico
Dimensions4.6 in H x 2.86 in W x 0.23 in D
Frequency Rating60 Hz
Lamp TypeCFL/Halogen/Incandescent/LED
MaterialPlastic
Mounting TypeWall
Number of Poles1
Operation ModeSlide-to-Bright/Dim
Power Rating150/600 W
SeriesAriadni®
Start TypePreset
Temperature Rating0 to 40 deg C
Terminal TypePush-In/Screw
Type3-Way Traditional Style
Voltage Rating120 VAC

Features

  • Lutron patented technology to optimize the dim range of your bulb and prevent interference with other dimmers in the home
  • The toggle style switch automatically returns to your favorite pre-selected light level and the C-L models with HED technology improve dimming performance of dimmable CFLs and LEDs compared to standard dimmers
  • Lutron controls are rated at 120 VAC, 60 Hz unless otherwise noted
  • Provides over 250 lighting levels so you can create the perfect light for any activity
  • Matching Fassada gloss wallplates available for 1-gang to 3-gang sizes
  • Tested on 1,000s of bulbs and dozens of brands for flicker-free dimming
  • On/off toggle switch with a captive linear slide dimmer for a traditional wallplate opening
  • Can be used in single-pole or 3-Way applications, where lights are controlled from one or two locations
  • Wallplates not included, order separately
  • Superior RFI suppression
  • Low end adjustment to accommodate a wide range of bulbs
  • Power failure memory
  • Shallow 1 in deep back cover for easy installation
  • HED™ technology advanced Lutron® dimming circuitry designed for compatibility with most high efficacy light bulbs
  • 100 Percent factory tested
  • Small slider dims and brightens the lights
  • To control dimmable compact fluorescent load (CFL) with integrated ballast, dimmable LED with integrated driver, halogen, incandescent
