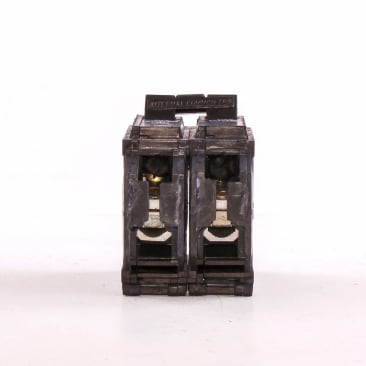

ABB THQB2115 ASM THQB C/B 2 POLE 120/240V

MFR Part #: THQB2115
SKU #: 1134951
Brand: ABB
UPC: 783164012231
GE Q-Line® THQB2115 A-Series™ II Miniature Circuit Breaker, 120/240 V AC, 15 A, 10 kA Interrupt, 2 Poles, Thermal Magnetic Trip
Electrical Distribution and Control, Commercial and Residential Applications
GSA Compliant | UL File No. E11592 | HACR Rated

GE Q-Line® Miniature Circuit Breaker, Series: A-Series™ II, 120/240 V AC, 15 A, 10 kA Interrupt, THQ Frame, Thermal Magnetic Trip, 2 Pole, 1 ph, Load Lug Connection, 14 to 8 kcmil, 12 to 8 kcmil Wire, Bolted-On Mounting, 60/75 deg C, 3-9/32 in H x 2 in W x 2-3/8 in D Dimensions

Q-Line® circuit breakers are 1 in wide per pole, compact, thermal magnetic devices designed for residential and commercial applications. the QB breakers are bolt-on versions of the Q-Line® used for bolting to the bus connections of loadcenters and lighting panels. all Q-Line® circuit breakers feature quick-make quick-break mechanisms, common trip bars and easy to spot trip indication to ensure safety and reliability. Q-Line® breakers are available in 1, 2 and 3-pole versions, can be ordered with auxiliary contact and shunt trip accessories and can be ordered for use in HID applications.

Product Details

GE Q-Line® Miniature Circuit Breaker, Series: A-Series™ II, 120/240 V AC, 15 A, 10 kA Interrupt, THQ Frame, Thermal Magnetic Trip, 2 Pole, 1 ph, Load Lug Connection, 14 to 8 kcmil, 12 to 8 kcmil Wire, Bolted-On Mounting, 60/75 deg C, 3-9/32 in H x 2 in W x 2-3/8 in D Dimensions

Q-Line® circuit breakers are 1 in wide per pole, compact, thermal magnetic devices designed for residential and commercial applications. the QB breakers are bolt-on versions of the Q-Line® used for bolting to the bus connections of loadcenters and lighting panels. all Q-Line® circuit breakers feature quick-make quick-break mechanisms, common trip bars and easy to spot trip indication to ensure safety and reliability. Q-Line® breakers are available in 1, 2 and 3-pole versions, can be ordered with auxiliary contact and shunt trip accessories and can be ordered for use in HID applications.

Attributes

Amperage Rating: 15 A
Number of Poles: 2
Connection Type: Load Lug
Dimensions: 3-9/32 in H x 2 in W x 2-3/8 in D
Frame: THQ
Interrupt Rating: 10 kA
Mounting Type: Bolted-On
Phase: 1
Series: A-Series™ II
Temperature Rating: 60/75 deg C
Trip Type: Thermal Magnetic
Voltage Rating: 120/240 V AC
Wire Size: 14 to 8 kcmil, 12 to 8 kcmil

Features

  • Standard continuous current rated
  • EB GO schedule
  • Suitable for reverse feed
  • Internal common trip
  • 10 kA at 120 VAC, 10 kA at 120/240 VAC interrupt rating
