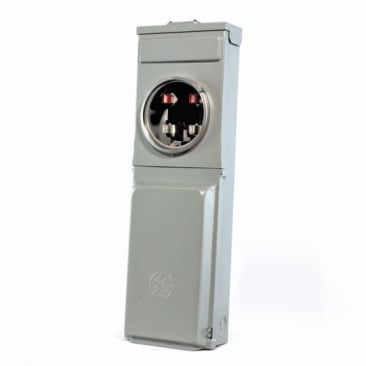

ABB GE1LM532SS 50/30/20A GFCI SURFACE MOUNT SINGLE HEAD RV UNIT

MFR Part #: GE1LM532SS
SKU #: 1285175
Brand: ABB
UPC: 783164324273
GE GE1LM532SS 1-Head Ring Type Standard Metered RV Power Pedestal With Hub Provision, 120/240 VAC, 100 A, 1 Phase , 6 to 1/0 AWG Wire, NEMA 3R Enclosure
For use as service entrance equipment when installed in accordance with the national electric code
ARRA Compliant | Buy American Act Compliant | RoHS Compliant | UL Listed | cUL Listed

GE Metered RV Power Pedestal, 1-Head Ring Type Standard, 120/240 VAC, 100 A, 1 ph, 20/30/50 A GFCI Receptacle, THQL1120/THQL1130/THQL2150 Circuit Breaker, 6 to 1/0 AWG Wire, Bottom/Top Feed, 10 kA Short Circuit, NEMA 3R Enclosure, Steel, Surface Mounting

General Electrics metallic RV units are manufactured using 16 ga, galvanized zinc coated steel and NEMA 3R construction, which resists corrosion and fading and provides lasting service in outdoor applications. Units are available in surface mount and earth burial or pad mount posts, metered or unmetered, offering a wide range of receptacle configurations to fit your needs.

Product Details

GE Metered RV Power Pedestal, 1-Head Ring Type Standard, 120/240 VAC, 100 A, 1 ph, 20/30/50 A GFCI Receptacle, THQL1120/THQL1130/THQL2150 Circuit Breaker, 6 to 1/0 AWG Wire, Bottom/Top Feed, 10 kA Short Circuit, NEMA 3R Enclosure, Steel, Surface Mounting

General Electrics metallic RV units are manufactured using 16 ga, galvanized zinc coated steel and NEMA 3R construction, which resists corrosion and fading and provides lasting service in outdoor applications. Units are available in surface mount and earth burial or pad mount posts, metered or unmetered, offering a wide range of receptacle configurations to fit your needs.

Attributes

Amperage Rating: 100 A
Circuit Breaker Type: THQL1120/THQL1130/THQL2150
Enclosure Type: NEMA 3R
Feed Type: Bottom/Top
Material: Steel
Mounting Type: Surface
Phase: 1
Receptacle Type: 20/30/50 A GFCI
Short Circuit Current Rating: 10 kA
Type: 1-Head Ring Type Standard
Voltage Rating: 120/240 VAC
Wire Size: 6 to 1/0 AWG

Features

  • Accommodations for utility sealing
  • Loop feed provisions standard on pedestal units
  • High quality electro deposition paint finish
  • Rolled edge pedestal bottoms protect service cable
  • Padlocking provisions on main door
  • Stay open position on door for convenience
  • Most popular receptacle configurations
  • 6 to 1/0 AWG stranded copper/aluminum line connector
  • 14 to 10 AWG solid/stranded copper load connector

Resources

Specification Sheet
