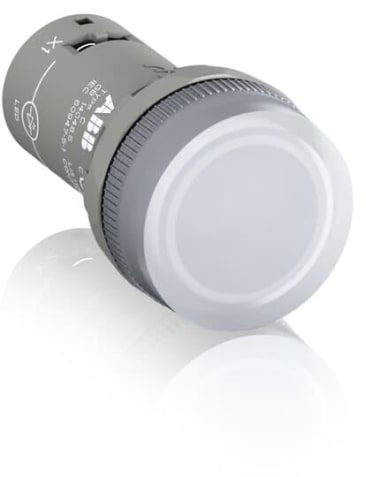

ABB CL2-502C Image 1

ABB CL2-502C PILOT LIGHT CLEAR 24V AC/DC

MFR Part #: CL2-502C
SKU #: 1134366
Brand: ABB
UPC: 888614470026
ABB CL2-502C Compact Illuminated Pilot Light With Integrated LED, 24 VAC/VDC, 16 mA
UL Listed | CE Certified | CCC Certified

ABB Pilot Light, Compact Illuminated, 24 VAC/VDC, 16 mA, Clear Lens, LED Lamp, 30 mm Size, Circle Shape, BA9s Base, >/=50000 hr Average Life, Screw Terminal, NEMA 1/3R/4/4X/12/13/IP20/IP66/IP67/IP69K Enclosure, Environmental Conditions: -25 to 70 deg C Operating, -40 to 85 deg Storage, 40 to 70% Relative Humidity

The compact range is designed to be our most efficient solution when it comes to assembly and cost, suitable for the most demanding environments. It can also be combined with the modular range to cover the needs of additional flexibility.

Product Details

ABB Pilot Light, Compact Illuminated, 24 VAC/VDC, 16 mA, Clear Lens, LED Lamp, 30 mm Size, Circle Shape, BA9s Base, >/=50000 hr Average Life, Screw Terminal, NEMA 1/3R/4/4X/12/13/IP20/IP66/IP67/IP69K Enclosure, Environmental Conditions: -25 to 70 deg C Operating, -40 to 85 deg Storage, 40 to 70% Relative Humidity

The compact range is designed to be our most efficient solution when it comes to assembly and cost, suitable for the most demanding environments. It can also be combined with the modular range to cover the needs of additional flexibility.

Attributes

Amperage Rating16 mA
Average Life>/=50000 hr
Base TypeBA9s
Country Of OriginChina
Enclosure TypeNEMA 1/3R/4/4X/12/13/IP20/IP66/IP67/IP69K
Environmental Conditions-25 to 70 deg C Operating, -40 to 85 deg Storage, 40 to 70% Relative Humidity
Lamp TypeLED
Lens ColorClear
ShapeCircle
Size30 mm
Terminal TypeScrew
TypeCompact Illuminated
Voltage Rating24 VAC/VDC

Features

  • All-in-one design
  • Same front as modular range
  • 42 mm built-in depth
  • Up to 2 electrical contacts
