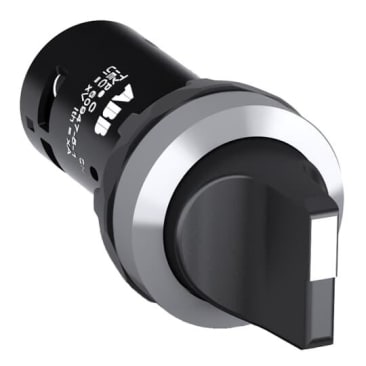

ABB C2SS2-30B-11 2-POSITION SELECTOR SWITCH BLACK

MFR Part #: C2SS2-30B-11
SKU #: 1302048
Brand: ABB
UPC: 888614202962
ABB C2SS2-30B-11 C2SS Compact Switch, 0.03 m H x 0.03 m W x 0.072 m D, 1NO-1NC Contact, Short Lever Operator, Black
Mainly used for controlling 3-phase motors and generally for controlling power circuits up to 690 VAC and 220 VDC and used for many other applications such as bypass, capacitor switching, lighting, DC power circuits
RoHS Compliant|CSA|cUL|CE|GOST|IEC 60947-5-1:2016(4th Edition)|CQC Certified|cURus Certified|UKCA|DNV GL Certified|CCC certified|EAC Certified|CMRT|REACH Compliant|TSCA|CB Certified|IP66|IP67|IP69K|IP20

ABB, C2SS2-30B-11, Switch, Compact, Series: C2SS, 0.03 m H x 0.03 m W x 0.072 m D Size, 1NO-1NC Contact Configuration, Maintained Contact Mode, Short Lever Operator, 2 Positions, Bezel/Housing: Chrome Metal, Screw Terminal, NEMA 1/3R/4/4X/12/13/IP20/IP66/IP67/IP69K Enclosure, Black, Environmental Conditions: -25 to 70 deg C Operating Temperature, -40 to 85 deg C Storage Temperature

Product Details

ABB, C2SS2-30B-11, Switch, Compact, Series: C2SS, 0.03 m H x 0.03 m W x 0.072 m D Size, 1NO-1NC Contact Configuration, Maintained Contact Mode, Short Lever Operator, 2 Positions, Bezel/Housing: Chrome Metal, Screw Terminal, NEMA 1/3R/4/4X/12/13/IP20/IP66/IP67/IP69K Enclosure, Black, Environmental Conditions: -25 to 70 deg C Operating Temperature, -40 to 85 deg C Storage Temperature

Attributes

Color: Black
Series: C2SS
Size: 0.03 m H x 0.03 m W x 0.072 m D
Actuator: Short Handle
Bezel/Housing: Chrome Metal
Contact Configuration: 1NO-1NC
Contact Mode: Maintained
Enclosure Type: NEMA 1/3R/4/4X/12/13/IP20/IP66/IP67/IP69K
Environmental Conditions: -25 to 70 deg C Operating Temperature, -40 to 85 deg C Storage Temperature
Number of Positions: 2
Operator Type: Short Lever
Terminal Type: Screw
Type: Compact

Features

  • 0.03 m, Product Net Width
  • 0.03 m, Product Net Width
  • 0.072 m, Product Net Width
  • Operation -25 to +70 deg C
  • Storage -40 to +85 deg C - Ambient Air Temperature
  • Non-illuminated - Illumination
  • 2-position - Sub-Function
  • A, C - Maintained Positions
  • 1 Number of Auxiliary Contacts NC
  • 1 Number of Auxiliary Contacts NO
  • 3 - Pollution Degree
  • 6 kV - Rated Impulse Withstand Voltage (U imp )
  • 50 / 60 Hz - Rated Frequency
  • 24 to 300 V
  • Maximum 300 V - Rated Operational Voltage
  • (24 V) 0.3 A
  • (125 V) 0.2 A - Rated Operational Current DC-13 (I e )
  • (240 V) 1 A - Rated Operational Current AC-15 (I e )
  • Maximum 5 W - Power Loss
  • 0.5 million - Mechanical Durability
