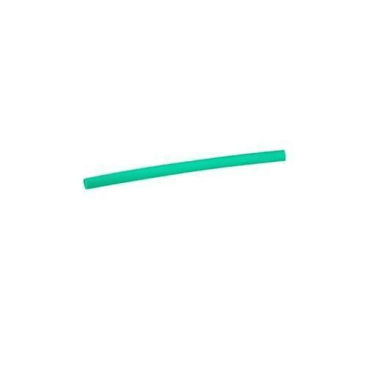

ABB CPO125-5-A Image 1

ABB CPO125-5-A 1/8X4FT GREEN HEAT SHRINK

MFR Part #: CPO125-5-A
SKU #: 1286760
Brand: ABB
UPC: 786210833682
Shrink-Kon® CPO125-5-A Flame-Retardant Non-Lined Heat Shrink Tubing, 0.13 in ID Expanded, 0.06 in ID Recovered, 0.02 in THK Wall Recovered, 4 ft L, Polyolefin, Green
UL Listed|CSA Certified|MIL-DTL-23053/5|AMS 3636/3637|DEF STAN 59-97

Shrink-Kon® Heat Shrink Tubing, Flame-Retardant Non-Lined, Series: CPO, 600 V AC, 0.13 in Inner Dia Expanded, 0.06 in Inner Dia Recovered, Thin Wall, 0.02 in Wall Thickness Recovered, 30 to 24 AWG Wire, 2:1 Shrink, 4 ft Length, -55 to 135 deg C, 120 deg C Shrink, Polyolefin, Green

When it comes to moisture proofing connections and terminations, T&B® heat shrinkable tubing, boots and end caps have proven themselves over years of service to the industry. Made of thermally stabilized cross linked polyolefin, these heat shrinkable insulators can be used over lead, steel, aluminum, copper, standard plastic and elastomeric insulating materials. T&B® heat shrinkable insulators are designed to be easy to use. They provide an appropriate level of insulation and abrasion protection.

Product Details

Shrink-Kon® Heat Shrink Tubing, Flame-Retardant Non-Lined, Series: CPO, 600 V AC, 0.13 in Inner Dia Expanded, 0.06 in Inner Dia Recovered, Thin Wall, 0.02 in Wall Thickness Recovered, 30 to 24 AWG Wire, 2:1 Shrink, 4 ft Length, -55 to 135 deg C, 120 deg C Shrink, Polyolefin, Green

When it comes to moisture proofing connections and terminations, T&B® heat shrinkable tubing, boots and end caps have proven themselves over years of service to the industry. Made of thermally stabilized cross linked polyolefin, these heat shrinkable insulators can be used over lead, steel, aluminum, copper, standard plastic and elastomeric insulating materials. T&B® heat shrinkable insulators are designed to be easy to use. They provide an appropriate level of insulation and abrasion protection.

Attributes

Color: Green
Inner Diameter Expanded: .13 in
Inner Diameter Recovered: .06 in
Length: 4 ft
Material: Polyolefin
Series: CPO
Shrink Ratio: 2:1
Shrink Temperature: 120 deg C
Temperature Rating: -55 to 135 deg C
Type: Flame-Retardant Non-Lined
Voltage Rating: 600 V AC
Wall Thickness Recovered: .02 in
Wall Type: Thin
Wire Size: 30 to 24 AWG

Features

  • 600 V/mil dielectric strength
  • 0.2% water absorption

Resources

Specification Sheet
