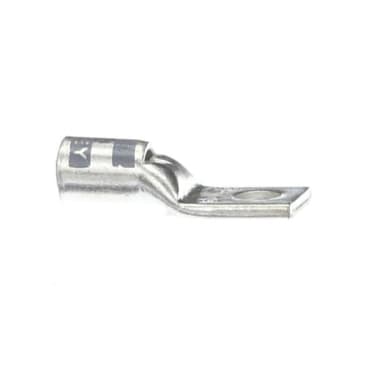

ABB 54106 Image 2
ABB 54106 Image 3
ABB 54106 Image 4
content loaded
ABB 54106 Image 1

ABB 54106 GREY 1-HOLE LUG #4 SHORT BARREL

MFR Part #: 54106
SKU #: 1005269
Brand: ABB
UPC: 786210541068
Color-Keyed® 54106 54100 1-Hole Non-Insulated Compression Lug With Peep Hole, 4 AWG Copper Conductor, Die Code: 29, 1/4 in Stud, Copper
For providing a high degree of reliability in electrical wiring
CSA Certified | UL File No. E9809

Color-Keyed® Compression Lug, 1-Hole Non-Insulated, Series: 54100, Copper Conductor, 4 AWG Conductor, Die Code: 29, 35 kV, 1/4 in Stud, Straight Tongue, 0.6 in L x 0.55 in W x 0.09 in THK Tongue, 1.38 in Overall Length, Standard Barrel, 0.37 in Dia Barrel, Specifications: Tin Plated, 0.281 in Mounting Hole, Copper, Gray

The Color-Keyed® compression system ensures a proper crimp onto the conductor by matching the right connector to the right tool and die, using a color coding system that was developed and introduced to the industry by T&B®. When using the Color-Keyed® compression system with our Blackburn® line of compression connectors, the installer can count on a reliable, high quality connection.

Product Details

Color-Keyed® Compression Lug, 1-Hole Non-Insulated, Series: 54100, Copper Conductor, 4 AWG Conductor, Die Code: 29, 35 kV, 1/4 in Stud, Straight Tongue, 0.6 in L x 0.55 in W x 0.09 in THK Tongue, 1.38 in Overall Length, Standard Barrel, 0.37 in Dia Barrel, Specifications: Tin Plated, 0.281 in Mounting Hole, Copper, Gray

The Color-Keyed® compression system ensures a proper crimp onto the conductor by matching the right connector to the right tool and die, using a color coding system that was developed and introduced to the industry by T&B®. When using the Color-Keyed® compression system with our Blackburn® line of compression connectors, the installer can count on a reliable, high quality connection.

Attributes

Barrel Size: 0.37 in Dia
Barrel Type: Standard
Color: Gray
Conductor Size: 4 AWG
Conductor Type: Copper
Country Of Origin: Mexico
Die Code: 29
Material: Copper
Mounting Hole Size: .281 in
Overall Length: 1.38 in
Series: 54100
Specifications: Tin Plated
Stud Size: 1/4 in
Tongue Size: 0.6 in L x 0.55 in W x 0.09 in THK
Tongue Type: Straight
Type: 1-Hole Non-Insulated
Voltage Rating: 35 kV

Features

  • Peep hole
  • High conductivity wrought copper construction
  • Tin plated finish
