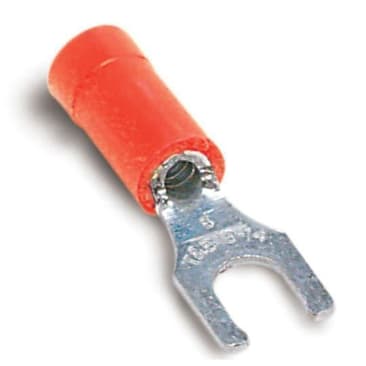

ABB 18RA-10FL Image 1

ABB 18RA-10FL INSULATED VINYL LOCKING FORK TERMINAL 22-16 BOLT NO10

MFR Part #: 18RA-10FL
SKU #: 1272254
Brand: ABB
UPC: 786210806488
Sta-Kon® 18RA-10FL RA Series Insulated Fork Terminal, 22 to 16 AWG Conductor, 0.97 in L, Brazed Seam/Serrated Barrel, Copper, Red
CSA Certified | UL 94 V-0 Flammability Rated | UL File No. E9809

Sta-Kon® Fork Terminal, Insulated, Series: RA Series, 22 to 16 AWG Conductor, #10 Stud, 0.97 in Length, Brazed Seam/Serrated Barrel, Locking Fork Tongue, 0.29 in W x 0.02 in THK Tongue, 600 VAC, Specifications: 0.15 in Dia Maximum Insulation, 1/4 in Clearance, Vinyl Insulation, 105 deg C, Copper, Electroplated Tin, Red

Product Details

Sta-Kon® Fork Terminal, Insulated, Series: RA Series, 22 to 16 AWG Conductor, #10 Stud, 0.97 in Length, Brazed Seam/Serrated Barrel, Locking Fork Tongue, 0.29 in W x 0.02 in THK Tongue, 600 VAC, Specifications: 0.15 in Dia Maximum Insulation, 1/4 in Clearance, Vinyl Insulation, 105 deg C, Copper, Electroplated Tin, Red

Attributes

Barrel TypeBrazed Seam/Serrated
ColorRed
Conductor Size22 to 16 AWG
Country Of OriginUS
FinishElectroplated Tin
Length.97 in
MaterialCopper
SeriesRA Series
Specifications0.15 in Dia Maximum Insulation, 1/4 in Clearance, Vinyl Insulation
Stud Size#10
Temperature Rating105 deg C
Tongue Size0.29 in W x 0.02 in THK
Tongue TypeLocking Fork
TypeInsulated
Voltage Rating600 VAC

Features

  • Locking fork terminals have a specially designed tongue that lets them go on like a fork and stay on like a ring
  • Brazed seam barrel is serrated for high pull-out value
  • Insulation is Color coded
  • WT112M, WT145C, WT2000, ERG4001, ERG4003 recommended tools
