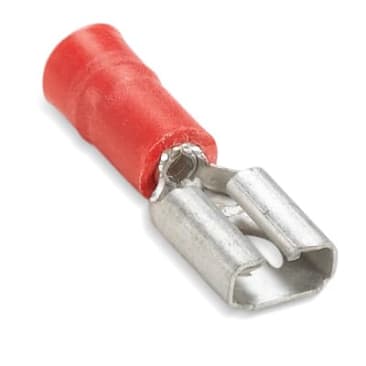

ABB 18RA-250F Image 1

ABB 18RA-250F INS VINYL FEM 250 DISC NO22-18 RED

MFR Part #: 18RA-250F
SKU #: 1256061
Brand: ABB
UPC: 786210801001
Sta-Kon® 18RA-250F Female Disconnect, 22 to 18 AWG Conductor, 0.25 in W x 0.032 in THK Tab, Brazed Seam Barrel, Brass, Red, Insulated
UL File No. E9809 | CSA Certified | UL 94 V-0 Flammability Rating | UL File No. E66716

Sta-Kon® Female Disconnect, Series: 250, 22 to 18 AWG Conductor, 0.25 in W x 0.032 in THK Tab, Brazed Seam Barrel, Crimp Terminal, 600 VAC, 0.15 in Dia Maximum Insulation, 0.03 in THK Stock, 105 deg C, Brass, Red, Electroplated Tin, 0.96 in L x 0.29 in W, Insulated: Insulated

Wire terminals offer more copper and a wider funnel to assure premium connection with less work in a line that includes insulated and non-insulated terminals, splices, wire joints, disconnects, ferrules, heat shrinkable terminals, splices and disconnects.

Product Details

Sta-Kon® Female Disconnect, Series: 250, 22 to 18 AWG Conductor, 0.25 in W x 0.032 in THK Tab, Brazed Seam Barrel, Crimp Terminal, 600 VAC, 0.15 in Dia Maximum Insulation, 0.03 in THK Stock, 105 deg C, Brass, Red, Electroplated Tin, 0.96 in L x 0.29 in W, Insulated: Insulated

Wire terminals offer more copper and a wider funnel to assure premium connection with less work in a line that includes insulated and non-insulated terminals, splices, wire joints, disconnects, ferrules, heat shrinkable terminals, splices and disconnects.

Attributes

Barrel Type: Brazed Seam
Color: Red
Conductor Size: 22 to 18 AWG
Country Of Origin: US
Dimensions: 0.96 in L x 0.29 in W
Finish: Electroplated Tin
Insulated: Insulated
Material: Brass
Series: 250
Specifications: 0.15 in Dia Maximum Insulation, 0.03 in THK Stock
Tab Size: 0.25 in W x 0.032 in THK
Temperature Rating: 105 deg C
Terminal Type: Crimp
Voltage Rating: 600 VAC

Features

  • Vinyl insulated
  • Unique construction of the female disconnect offers long term dependability
  • Funnel entry insulators enable easier inserting of wire into barrel
  • Brazed seam serrated barrel provides maximum tensile strength
  • Suitable for use with WT145C, WT2000, WT112M, ERG4001, ERG4003 tools
  • Color-coded for easy installation

Resources

Specification Sheet
