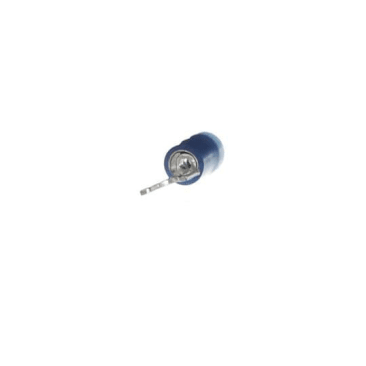

ABB RB14-10FL INSULATED NYLON LOCKING FORK TERMINAL 18-14 NO10
MFR Part #: RB14-10FL
SKU #: 1272272
Brand: ABB
UPC: 786210887388
Sta-Kon® RB14-10FL RB Series Insulated Fork Terminal, 18 to 14 AWG Conductor, 0.87 in L, Brazed Seam/Serrated Barrel, Copper, Blue
CSA Certified | UL 94 V-2 Flammability Rated | UL File No. E9809
Product Details
Attributes
Features
Resources
Sta-Kon® Fork Terminal, Insulated, Series: RB Series, 18 to 14 AWG Conductor, #10 Stud, 0.87 in Length, Brazed Seam/Serrated Barrel, Locking Fork Tongue, 0.29 in W x 0.03 in THK Tongue, 600 VAC, Specifications: 0.162 in Dia Maximum Insulation, 1/4 in Clearance, Nylon Insulation, 105 deg C, Copper, Electroplated Tin, Blue
Barrel Type:
Brazed Seam/Serrated
Color:
Blue
Conductor Size:
18 to 14 AWG
Country Of Origin:
US
Finish:
Electroplated Tin
Length:
.87 in
Material:
Copper
Series:
RB Series
Specifications:
0.162 in Dia Maximum Insulation, 1/4 in Clearance, Nylon Insulation
Stud Size:
#10
Temperature Rating:
105 deg C
Tongue Size:
0.29 in W x 0.03 in THK
Tongue Type:
Locking Fork
Type:
Insulated
Voltage Rating:
600 VAC
- Locking fork terminals have a specially designed tongue that lets them go on like a fork and stay on like a ring
- Brazed seam barrel is serrated for high pull-out value
- Insulation is Color coded
- WT112M, WT145A, WT145C, WT2000, ERG4001, ERG4003 recommended tools
Product Details
Sta-Kon® Fork Terminal, Insulated, Series: RB Series, 18 to 14 AWG Conductor, #10 Stud, 0.87 in Length, Brazed Seam/Serrated Barrel, Locking Fork Tongue, 0.29 in W x 0.03 in THK Tongue, 600 VAC, Specifications: 0.162 in Dia Maximum Insulation, 1/4 in Clearance, Nylon Insulation, 105 deg C, Copper, Electroplated Tin, Blue
Attributes
Barrel Type: Brazed Seam/Serrated
Color: Blue
Conductor Size: 18 to 14 AWG
Country Of Origin: US
Finish: Electroplated Tin
Length: .87 in
Material: Copper
Series: RB Series
Specifications: 0.162 in Dia Maximum Insulation, 1/4 in Clearance, Nylon Insulation
Stud Size: #10
Temperature Rating: 105 deg C
Tongue Size: 0.29 in W x 0.03 in THK
Tongue Type: Locking Fork
Type: Insulated
Voltage Rating: 600 VAC
Features
- Locking fork terminals have a specially designed tongue that lets them go on like a fork and stay on like a ring
- Brazed seam barrel is serrated for high pull-out value
- Insulation is Color coded
- WT112M, WT145A, WT145C, WT2000, ERG4001, ERG4003 recommended tools
