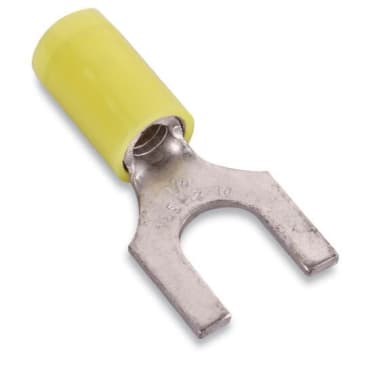

ABB RC10-6F INSULATED NYLON FORK TERMINAL 12-10 NO6 YELLOW
MFR Part #: RC10-6F
SKU #: 1272283
Brand: ABB
UPC: 786210804323
Sta-Kon® RC10-6F RC Series Insulated Fork Terminal, 12 to 10 AWG Conductor, 0.97 in L, Brazed Seam/Serrated Barrel, Copper, Yellow
CSA Certified | UL 94 V-2 Flammability Rated | UL File No. E9809
Product Details
Attributes
Features
Resources
Sta-Kon® Fork Terminal, Insulated, Series: RC Series, 12 to 10 AWG Conductor, #6 Stud, 0.97 in Length, Brazed Seam/Serrated Barrel, Fork Tongue, 0.31 in W x 0.04 in THK Tongue, 600 VAC, Specifications: 0.21 in Dia Maximum Insulation, 0.27 in Clearance, Nylon Insulation, 105 deg C, Copper, Electroplated Tin, Yellow
Barrel Type:
Brazed Seam/Serrated
Color:
Yellow
Conductor Size:
12 to 10 AWG
Country Of Origin:
US
Finish:
Electroplated Tin
Length:
.97 in
Material:
Copper
Series:
RC Series
Specifications:
0.21 in Dia Maximum Insulation, 0.27 in Clearance, Nylon Insulation
Stud Size:
#6
Temperature Rating:
105 deg C
Tongue Size:
0.31 in W x 0.04 in THK
Tongue Type:
Fork
Type:
Insulated
Voltage Rating:
600 VAC
- Nylon insulated with inner bronze insulation grip sleeve lengthens flex radius of conductor and eliminates conductor creep
- Brazed seam barrel is serrated for high pull-out value
- Nylon jacket is Color coded
- WT112M, WT145A, WT145C, WT2000, ERG4001, ERG4003 recommended tools
Product Details
Sta-Kon® Fork Terminal, Insulated, Series: RC Series, 12 to 10 AWG Conductor, #6 Stud, 0.97 in Length, Brazed Seam/Serrated Barrel, Fork Tongue, 0.31 in W x 0.04 in THK Tongue, 600 VAC, Specifications: 0.21 in Dia Maximum Insulation, 0.27 in Clearance, Nylon Insulation, 105 deg C, Copper, Electroplated Tin, Yellow
Attributes
Barrel Type: Brazed Seam/Serrated
Color: Yellow
Conductor Size: 12 to 10 AWG
Country Of Origin: US
Finish: Electroplated Tin
Length: .97 in
Material: Copper
Series: RC Series
Specifications: 0.21 in Dia Maximum Insulation, 0.27 in Clearance, Nylon Insulation
Stud Size: #6
Temperature Rating: 105 deg C
Tongue Size: 0.31 in W x 0.04 in THK
Tongue Type: Fork
Type: Insulated
Voltage Rating: 600 VAC
Features
- Nylon insulated with inner bronze insulation grip sleeve lengthens flex radius of conductor and eliminates conductor creep
- Brazed seam barrel is serrated for high pull-out value
- Nylon jacket is Color coded
- WT112M, WT145A, WT145C, WT2000, ERG4001, ERG4003 recommended tools
