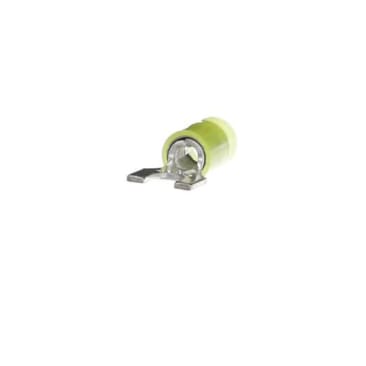

ABB RC10-8F INSULATED NYLON FORK TERMINAL 12-10 NO8 YELLOW

MFR Part #: RC10-8F
SKU #: 1272286
Brand: ABB
UPC: 786210804354
Sta-Kon® RC10-8F RC Series Insulated Fork Terminal, 12 to 10 AWG Conductor, 1 in L, Brazed Seam/Serrated Barrel, Copper, Yellow
CSA Certified | UL 94 V-2 Flammability Rated | UL File No. E9809

Sta-Kon® Fork Terminal, Insulated, Series: RC Series, 12 to 10 AWG Conductor, #8 Stud, 1 in Length, Brazed Seam/Serrated Barrel, Fork Tongue, 0.37 in W x 0.04 in THK Tongue, 600 V AC, Specifications: 0.21 in Dia Maximum Insulation, 0.27 in Clearance, Nylon Insulation, 105 deg C, Copper, Electroplated Tin, Yellow

Product Details

Sta-Kon® Fork Terminal, Insulated, Series: RC Series, 12 to 10 AWG Conductor, #8 Stud, 1 in Length, Brazed Seam/Serrated Barrel, Fork Tongue, 0.37 in W x 0.04 in THK Tongue, 600 V AC, Specifications: 0.21 in Dia Maximum Insulation, 0.27 in Clearance, Nylon Insulation, 105 deg C, Copper, Electroplated Tin, Yellow

Attributes

Barrel Type: Brazed Seam/Serrated
Color: Yellow
Conductor Size: 12 to 10 AWG
Country Of Origin: US
Finish: Electroplated Tin
Length: 1 in
Material: Copper
Series: RC Series
Specifications: 0.21 in Dia Maximum Insulation, 0.27 in Clearance, Nylon Insulation
Stud Size: #8
Temperature Rating: 105 deg C
Tongue Size: 0.37 in W x 0.04 in THK
Tongue Type: Fork
Type: Insulated
Voltage Rating: 600 V AC

Features

  • Nylon insulated with inner bronze insulation grip sleeve lengthens flex radius of conductor and eliminates conductor creep
  • Brazed seam barrel is serrated for high pull-out value
  • Nylon jacket is Color coded
  • WT112M, WT145A, WT145C, WT2000, ERG4001, ERG4003 recommended tools
