ABB RB14-6 Image 1

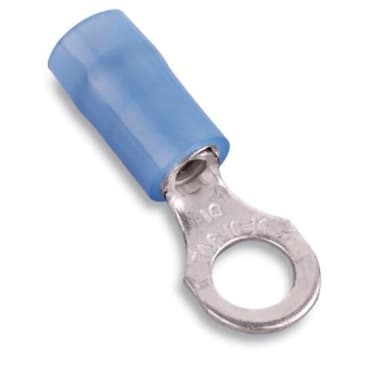

ABB RB14-6 INSULATED NYLON RING TERMINAL 18-14 BOLT NO6 BLUE

MFR Part #: RB14-6
SKU #: 1272273
Brand: ABB
UPC: 786210804026
Sta-Kon® RB14-6 RB Series Insulated Ring Terminal, 18 to 14 AWG Conductor, 0.89 in L, Insulation Grip Sleeve Barrel, Copper, Blue
For WT2000, WT112M, WT145C, ERG4001, ERG4003 and WT145A tools
CSA Certified | UL Listed | UL File No. E9809 | UL 94 V-2 Flammability Rated

Sta-Kon® Ring Terminal, Insulated, Series: RB Series, 18 to 14 AWG Conductor, #6 Stud, 0.89 in Length, Insulation Grip Sleeve Barrel, Ring Tongue, 0.31 in W x 0.03 in THK Tongue, 600 VAC, 0.162 in Dia Maximum Insulation, 1/4 in Clearance, Nylon Insulation, 105 deg C, Copper, Tin Coated, Blue

Sta-Kon® wire terminals offer more copper and a wider funnel to assure premium connection with less work in a line that includes insulated and non-insulated terminals, splices, wire joints, disconnects, ferrules, heat shrinkable terminals, splices and disconnects.

Product Details

Sta-Kon® Ring Terminal, Insulated, Series: RB Series, 18 to 14 AWG Conductor, #6 Stud, 0.89 in Length, Insulation Grip Sleeve Barrel, Ring Tongue, 0.31 in W x 0.03 in THK Tongue, 600 VAC, 0.162 in Dia Maximum Insulation, 1/4 in Clearance, Nylon Insulation, 105 deg C, Copper, Tin Coated, Blue

Sta-Kon® wire terminals offer more copper and a wider funnel to assure premium connection with less work in a line that includes insulated and non-insulated terminals, splices, wire joints, disconnects, ferrules, heat shrinkable terminals, splices and disconnects.

Attributes

Barrel TypeInsulation Grip Sleeve
ColorBlue
Conductor Size18 to 14 AWG
Country Of OriginUS
FinishTiN Coated
Length.89 in
MaterialCopper
Specifications0.162 in Dia Maximum Insulation, 1/4 in Clearance, Nylon Insulation
Stud Size#6
Temperature Rating105 deg C
Tongue Size0.31 in W x 0.03 in THK
Tongue TypeRing
TypeInsulated
Voltage Rating600 VAC
SeriesRB Series

Features

  • Self-insulated with high dielectric strength nylon sleeves
  • An inner bronze insulation grip sleeve lengthens the flexing radius of the conductor and eliminates conductor creep
  • Made of copper and has electro-tin plating for high conductivity/corrosion resistance
  • 100 pieces/pack
