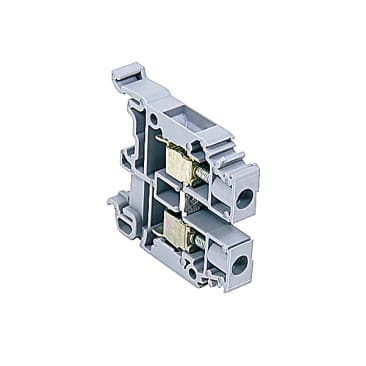

ENTRELEC 0115 118 11 M6/8 600V 50A 18-8AWG TERM BLK
MFR Part #: 011511811
SKU #: 0730028
Brand: ABB
UPC: 662019955889
ABB 011511811 SNA Terminal Block, 1000 VAC, 41 A, 8 AWG Wire, DIN Rail Mount
For energy, explosive atmospheres, maritime, material handling and traction industries, control panels and standard distribution applications
ARRA Compliant | Buy American Act Compliant | RoHS Compliant | CE Certified | CSA Certified | cUL Listed | EAC Certified | UL94 V-0 Flammability Rating
Product Details
Attributes
Features
Resources
ABB Terminal Block, Series: SNA, 1000 VAC, 41 A, 8 AWG Wire, 12 mm Wire Strip Length, Feed-Through Terminal, M6/8 Terminal, 8 mm Spacing, 0.8 to 1 N-m, DIN Rail Mount, Screw Clamp, -55 to 110 deg C, Polyamide, Gray, 1.75 in L x 0.315 in W x 2.09 in H
Amperage Rating:
41 A
Color:
Gray
Connection Type:
Screw Clamp
Country Of Origin:
France
Dimensions:
1.75 in L x 0.315 in W x 2.09 in H
Material:
Polyamide
Mounting Type:
DIN Rail
Series:
SNA
Spacing:
8 mm
Temperature Rating:
-55 to 110 deg C
Terminal Size:
M6/8
Terminal Type:
Feed-Through
Torque Rating:
0.8 to 1 N-m
Voltage Rating:
1000 VAC
Wire Size:
8 AWG
Wire Strip Length:
12 mm
- Self-locking clamp design prevents screw loosening
- Funneled side entry for up to two ferruled or non - ferruled solid or stranded wires
- High quality steel offers a very high over - torque resistance
- 600 VAC main circuit voltage
- Clamp is protected from harsh environments by a zinc bichromate surface treatment
- Use with applications ranging from standard distribution and control panels
- Compensates for the flattening of copper under contact pressure
- Mounting on DIN rail G32 (32 x 15 mm mounting rail) according to IEC 60715 - TH35-7.5 (35 x 7.5 mm mounting rail) according to IEC 60715 - TH35-15 (35 x 15 mm mounting rail) according to IEC 60715
Product Details
ABB Terminal Block, Series: SNA, 1000 VAC, 41 A, 8 AWG Wire, 12 mm Wire Strip Length, Feed-Through Terminal, M6/8 Terminal, 8 mm Spacing, 0.8 to 1 N-m, DIN Rail Mount, Screw Clamp, -55 to 110 deg C, Polyamide, Gray, 1.75 in L x 0.315 in W x 2.09 in H
Attributes
Amperage Rating: 41 A
Color: Gray
Connection Type: Screw Clamp
Country Of Origin: France
Dimensions: 1.75 in L x 0.315 in W x 2.09 in H
Material: Polyamide
Mounting Type: DIN Rail
Series: SNA
Spacing: 8 mm
Temperature Rating: -55 to 110 deg C
Terminal Size: M6/8
Terminal Type: Feed-Through
Torque Rating: 0.8 to 1 N-m
Voltage Rating: 1000 VAC
Wire Size: 8 AWG
Wire Strip Length: 12 mm
Features
- Self-locking clamp design prevents screw loosening
- Funneled side entry for up to two ferruled or non - ferruled solid or stranded wires
- High quality steel offers a very high over - torque resistance
- 600 VAC main circuit voltage
- Clamp is protected from harsh environments by a zinc bichromate surface treatment
- Use with applications ranging from standard distribution and control panels
- Compensates for the flattening of copper under contact pressure
- Mounting on DIN rail G32 (32 x 15 mm mounting rail) according to IEC 60715 - TH35-7.5 (35 x 7.5 mm mounting rail) according to IEC 60715 - TH35-15 (35 x 15 mm mounting rail) according to IEC 60715
