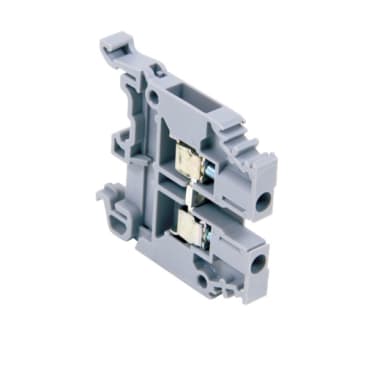

ENTRELEC 0115 116 07 M4/6 600V 25A 22-10AW TERM BLK
MFR Part #: 011511607
SKU #: 0730027
Brand: ABB
UPC: 662019955872
ABB 011511607 SNA 1-Level Feed-Through Terminal Block, 1000 VAC, 32 A, 22 to 10 AWG Wire, DIN Rail Mount
For applications ranging from standard distribution and control panels, to specialized applications in key industries such as traction, energy, maritime, explosive atmospheres and material handling
RoHS Compliant | CE Certified | CSA Certified | cUL Listed | GOST | UL94 V-0 Flammability Rating
Product Details
Attributes
Features
Resources
ABB Terminal Block, 1-Level Feed-Through, Series: SNA, 1000 VAC, 32 A, 22 to 10 AWG Wire, 9.5 mm Wire Strip Length, M4/6 Terminal, 6 mm Spacing, 0.5 to 0.8 N-m, DIN Rail Mount, Screw Clamp, -55 to 110 deg C, Polyamide, Gray, 40.5 mm L x 6 mm W x 44.5 mm H
Amperage Rating:
32 A
Color:
Gray
Connection Type:
Screw Clamp
Country Of Origin:
France
Dimensions:
40.5 mm L x 6 mm W x 44.5 mm H
Material:
Polyamide
Mounting Type:
DIN Rail
Series:
SNA
Spacing:
6 mm
Temperature Rating:
-55 to 110 deg C
Terminal Size:
M4/6
Torque Rating:
0.5 to 0.8 N-m
Type:
1-Level Feed-Through
Voltage Rating:
1000 VAC
Wire Size:
22 to 10 AWG
Wire Strip Length:
9.5 mm
- Self-locking clamp design prevents screw loosening
- Funneled side entry for up to two ferruled or non-ferruled solid or stranded wires
- Touch-safe IP20 protection
- High quality steel offers a very high over-torque resistance
- Compensates for the flattening of copper under contact pressure
- Clamp is protected from harsh environments by a zinc dichromate surface treatment
- Flexible 1x 0.22 to 4 sq-mm, rigid 1x 0.2 to 4 sq-mm, with insulated ferrule 1x 2.5 sq-mm connecting capacity main circuit
- G32 (32 x 15 mm mounting rail) according to IEC 60715 - TH35-7.5 (35 x 7.5 mm mounting rail) according to IEC 60715 - TH35-15 (35 x 15 mm mounting rail) according to IEC 60715 DIN rail mounting
- 3 deg pollution
- 4 mm recommended screw driver
- 4 sq-mm rated cross section
- A4 gauge type
- 800 VAC IEC, 600 VAC UL, 600 VAC CSA rated, 32 A IEC, 30 A UL, 25 A CSA rated
- 4 sq-mm solid rated IEC wire range, 22 to 10 AWG stranded rated UL, 10 AWG CSA wire range
- 800 VAC IEC, 600 VAC UL/CSA rated, 32 A IEC, 30 A UL, 25 A CSA rated
- 4 AWG IEC, 10 AWG UL/CSA rated wiring
- IP20 deg of protection
Product Details
ABB Terminal Block, 1-Level Feed-Through, Series: SNA, 1000 VAC, 32 A, 22 to 10 AWG Wire, 9.5 mm Wire Strip Length, M4/6 Terminal, 6 mm Spacing, 0.5 to 0.8 N-m, DIN Rail Mount, Screw Clamp, -55 to 110 deg C, Polyamide, Gray, 40.5 mm L x 6 mm W x 44.5 mm H
Attributes
Amperage Rating: 32 A
Color: Gray
Connection Type: Screw Clamp
Country Of Origin: France
Dimensions: 40.5 mm L x 6 mm W x 44.5 mm H
Material: Polyamide
Mounting Type: DIN Rail
Series: SNA
Spacing: 6 mm
Temperature Rating: -55 to 110 deg C
Terminal Size: M4/6
Torque Rating: 0.5 to 0.8 N-m
Type: 1-Level Feed-Through
Voltage Rating: 1000 VAC
Wire Size: 22 to 10 AWG
Wire Strip Length: 9.5 mm
Features
- Self-locking clamp design prevents screw loosening
- Funneled side entry for up to two ferruled or non-ferruled solid or stranded wires
- Touch-safe IP20 protection
- High quality steel offers a very high over-torque resistance
- Compensates for the flattening of copper under contact pressure
- Clamp is protected from harsh environments by a zinc dichromate surface treatment
- Flexible 1x 0.22 to 4 sq-mm, rigid 1x 0.2 to 4 sq-mm, with insulated ferrule 1x 2.5 sq-mm connecting capacity main circuit
- G32 (32 x 15 mm mounting rail) according to IEC 60715 - TH35-7.5 (35 x 7.5 mm mounting rail) according to IEC 60715 - TH35-15 (35 x 15 mm mounting rail) according to IEC 60715 DIN rail mounting
- 3 deg pollution
- 4 mm recommended screw driver
- 4 sq-mm rated cross section
- A4 gauge type
- 800 VAC IEC, 600 VAC UL, 600 VAC CSA rated, 32 A IEC, 30 A UL, 25 A CSA rated
- 4 sq-mm solid rated IEC wire range, 22 to 10 AWG stranded rated UL, 10 AWG CSA wire range
- 800 VAC IEC, 600 VAC UL/CSA rated, 32 A IEC, 30 A UL, 25 A CSA rated
- 4 AWG IEC, 10 AWG UL/CSA rated wiring
- IP20 deg of protection
