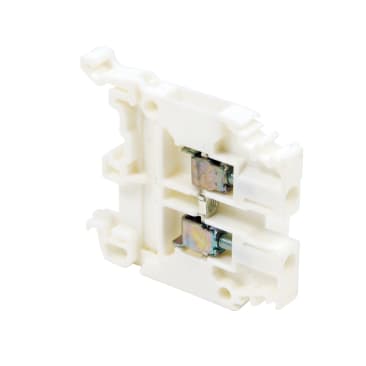

ENTRELEC 105 051 20 M4/6 WHITE TERMINAL BLOCK
MFR Part #: 010505120
SKU #: 1029549
Brand: ABB
UPC: 662019953601
ABB 010505120 SNA Terminal Block, 1000 VAC, 32 A, 10 AWG Wire, DIN Rail Mount
For energy, explosive atmospheres, maritime, material handling and traction industries, control panels and standard distribution applications
ARRA Compliant | Buy American Act Compliant | RoHS Compliant | cUL Listed | CE Certified | CSA Certified | EAC Certified | UL94 V-0 Flammability Rating
Product Details
Attributes
Features
Resources
ABB Terminal Block, Series: SNA, 1000 VAC, 32 A, 10 AWG Wire, 9.5 mm Wire Strip Length, Feed-Through Terminal, M4/6 Terminal, 6 mm Spacing, 0.5 to 0.8 N-m, DIN Rail Mount, Screw Clamp, -55 to 110 deg C, Polyamide, White, 1.75 in L x 0.238 in W x 2.18 in H
Amperage Rating:32 A
Color:White
Connection Type:Screw Clamp
Dimensions:1.75 in L x 0.238 in W x 2.18 in H
Material:Polyamide
Mounting Type:DIN Rail
Series:SNA, SNA Series
Spacing:6 mm
Temperature Rating:-5 to 40 deg C, -55 to 110 deg C
Terminal Size:M4/6
Terminal Type:Feed-Through
Torque Rating:0.5 to 0.8 N-m
Voltage Rating:1 kV AC, 1000 VAC
Wire Size:10 AWG
Wire Strip Length:9.5 mm
Height:2.09 in
Housing Color:White
Housing Material:Polyamide
Number of Connections:2
Pitch Size:6 mm
Width:1-3/4 in
- Self-locking clamp design prevents screw loosening
- Funneled side entry for up to two ferruled or non - ferruled solid or stranded wires
- High quality steel offers a very high over - torque resistance
- 600 VAC main circuit voltage, 1 W power loss
- Clamp is protected from harsh environments by a zinc bichromate surface treatment
- Use with applications ranging from standard distribution and control panels
- Compensates for the flattening of copper under contact pressure
- Mounting on DIN rail G32 (32 x 15 mm mounting rail) according to IEC 60715 - TH35-7.5 (35 x 7.5 mm mounting rail) according to IEC 60715 - TH35-15 (35 x 15 mm mounting rail) according to IEC 60715
Product Details
ABB Terminal Block, Series: SNA, 1000 VAC, 32 A, 10 AWG Wire, 9.5 mm Wire Strip Length, Feed-Through Terminal, M4/6 Terminal, 6 mm Spacing, 0.5 to 0.8 N-m, DIN Rail Mount, Screw Clamp, -55 to 110 deg C, Polyamide, White, 1.75 in L x 0.238 in W x 2.18 in H
Attributes
Amperage Rating: 32 A
Color: White
Connection Type: Screw Clamp
Dimensions: 1.75 in L x 0.238 in W x 2.18 in H
Material: Polyamide
Mounting Type: DIN Rail
Series: SNA, SNA Series
Spacing: 6 mm
Temperature Rating: -5 to 40 deg C, -55 to 110 deg C
Terminal Size: M4/6
Terminal Type: Feed-Through
Torque Rating: 0.5 to 0.8 N-m
Voltage Rating: 1 kV AC, 1000 VAC
Wire Size: 10 AWG
Wire Strip Length: 9.5 mm
Height: 2.09 in
Housing Color: White
Housing Material: Polyamide
Number of Connections: 2
Pitch Size: 6 mm
Width: 1-3/4 in
Features
- Self-locking clamp design prevents screw loosening
- Funneled side entry for up to two ferruled or non - ferruled solid or stranded wires
- High quality steel offers a very high over - torque resistance
- 600 VAC main circuit voltage, 1 W power loss
- Clamp is protected from harsh environments by a zinc bichromate surface treatment
- Use with applications ranging from standard distribution and control panels
- Compensates for the flattening of copper under contact pressure
- Mounting on DIN rail G32 (32 x 15 mm mounting rail) according to IEC 60715 - TH35-7.5 (35 x 7.5 mm mounting rail) according to IEC 60715 - TH35-15 (35 x 15 mm mounting rail) according to IEC 60715
