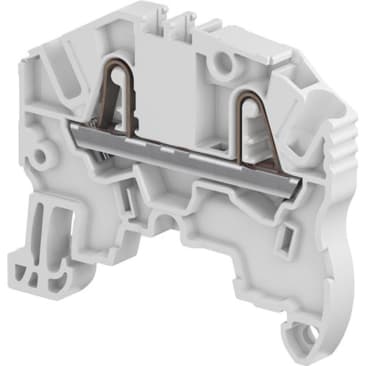

ZK2.5 FEED-THROUGH TERMINAL BLOCK ABB 1SNK705010R0000
MFR Part #: 1SNK705010R0000
SKU #: 1122177
Brand: ABB
UPC: 888614180055
ABB 1SNK705010R0000 Feed-Through Terminal Block, 1000 VAC, 24 A, 12 AWG Wire, DIN Rail Mount
cULus Listed | CSA | DNV | BV | CB | CE Certified | RoHS Compliant
Product Details
Attributes
Features
Resources
ABB Feed-Through Terminal Block, Series: SNK, 1000 VAC, 24 A, 12 AWG Wire, 11 mm Wire Strip Length, Feed-Through Terminal, 5.2 mm Spacing, DIN Rail Mount, Spring, -55 to 110 deg C, Polyamide, Gray, 40.2 mm L x 5.2 mm W x 50.9 mm H
Amperage Rating:
24 A
Color:
Gray
Connection Type:
Spring
Dimensions:
40.2 mm L x 5.2 mm W x 50.9 mm H
Material:
Polyamide
Mounting Type:
DIN Rail
Series:
SNK
Spacing:
5.2 mm
Temperature Rating:
-55 to 110 deg C
Terminal Type:
Feed-Through
Voltage Rating:
1000 VAC
Wire Size:
12 AWG
Wire Strip Length:
11 mm
- A2/2.3 mm Dia gauge
- 2200 VAC dielectric test voltage
- 2.5 sq-mm rated cross section
- 3 deg pollution
- Combine high performance with compact dimensions
- Opt for the best marking visibility thanks to the up-front, flat marker zone, which lets you mark upto eight digits or Increase the font size
- 2-connections
Product Details
ABB Feed-Through Terminal Block, Series: SNK, 1000 VAC, 24 A, 12 AWG Wire, 11 mm Wire Strip Length, Feed-Through Terminal, 5.2 mm Spacing, DIN Rail Mount, Spring, -55 to 110 deg C, Polyamide, Gray, 40.2 mm L x 5.2 mm W x 50.9 mm H
Attributes
Amperage Rating: 24 A
Color: Gray
Connection Type: Spring
Dimensions: 40.2 mm L x 5.2 mm W x 50.9 mm H
Material: Polyamide
Mounting Type: DIN Rail
Series: SNK
Spacing: 5.2 mm
Temperature Rating: -55 to 110 deg C
Terminal Type: Feed-Through
Voltage Rating: 1000 VAC
Wire Size: 12 AWG
Wire Strip Length: 11 mm
Features
- A2/2.3 mm Dia gauge
- 2200 VAC dielectric test voltage
- 2.5 sq-mm rated cross section
- 3 deg pollution
- Combine high performance with compact dimensions
- Opt for the best marking visibility thanks to the up-front, flat marker zone, which lets you mark upto eight digits or Increase the font size
- 2-connections
