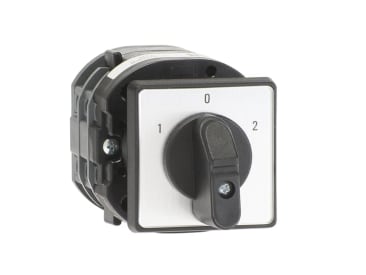

ABB OL40W2PB Image 1

CAMLINE REVERSING SWITCH 40A ABB OL40W2PB

MFR Part #: OL40W2PB
SKU #: 1060022
Brand: ABB
UPC: 888614212862
ABB OL40W2PB Motor Control Reversing Standard Rotary Cam Switch, 600/690 V AC, 45 A, 2 hp, 3 hp, 5 hp, 10 hp, 20 hp, 2 Poles, Basic Handle Actuator
Black Handle, Front Plate with Position Indication
Agriculture Irrigation, Pivot Systems, Pumping Systems, Traveling Sprinklers, Turf, Landscape Irrigation, Commercial Sprinkler Systems, Golf Course Irrigation and Drip Irrigation
IEC/EN 60 947-1 and IEC/EN 60 947-3 | VDE 0660 Teil 107 | UL 508 | CSA C22.2.x No. 14 | CCC Certified | CE Certified | Lloyd's Registered

ABB Rotary Cam Switch, Motor Control Reversing Standard, Series: OL Series, 600/690 V AC, 45 A, 2 hp, 3 hp, 5 hp, 10 hp, 20 hp, 2 Pole, Basic Handle Actuator, 1-0-2 Switching Positions, Door/Snap-On Mounting, NEMA 4X/IP20/IP65, Screw/Standard Box Tunnel Terminal, -30 to 70 deg C, Black, 98 mm L x 56 mm W x 56 mm H Dimensions

ABB new OM, ON and OL rotary cam switches offer a complete range of cam switches for control, instrumentation and motor starting applications, maximizing the benefits and optimizing your use of assets. The standard cam switches provide you with a variety of functionalities for the most common mounting types and applications with minimum footprint area.

Product Details

ABB Rotary Cam Switch, Motor Control Reversing Standard, Series: OL Series, 600/690 V AC, 45 A, 2 hp, 3 hp, 5 hp, 10 hp, 20 hp, 2 Pole, Basic Handle Actuator, 1-0-2 Switching Positions, Door/Snap-On Mounting, NEMA 4X/IP20/IP65, Screw/Standard Box Tunnel Terminal, -30 to 70 deg C, Black, 98 mm L x 56 mm W x 56 mm H Dimensions

ABB new OM, ON and OL rotary cam switches offer a complete range of cam switches for control, instrumentation and motor starting applications, maximizing the benefits and optimizing your use of assets. The standard cam switches provide you with a variety of functionalities for the most common mounting types and applications with minimum footprint area.

Attributes

Actuator: Handle
Amperage Rating: 45 A
Color: Black
Dimensions: 98 mm L x 56 mm W x 56 mm H
Horsepower: 2 hp, 3 hp, 5 hp, 10 hp, 20 hp
Mounting: Door/Snap-On
NEMA Rating: NEMA 4X/IP20/IP65
Number of Poles: 2
Series: OL Series
Switching Positions: 1-0-2
Temperature Rating: -30 to 70 deg C
Terminal Type: Screw/Standard Box Tunnel
Type: Motor Control Reversing Standard
Voltage Rating: 600/690 V AC

Features

  • Quick and easy to install
  • High protection class
  • High performance contacts
  • Special cam switches for distinctive requirements
  • CAMWEB for special cam switches
  • 2 hp at 120 VAC, 3 hp at 240 VAC, 10 hp at 480/600 VAC 1-phase and 5 hp at 120 VAC, 10 hp at 240 VAC, 20 hp at 480/600 VAC 3-phase
  • 60 deg step angle
