30W LED 4000K 120-277V BRONZE PHILIPS LPW16-78BZ
Product Details
Attributes
Features
Resources

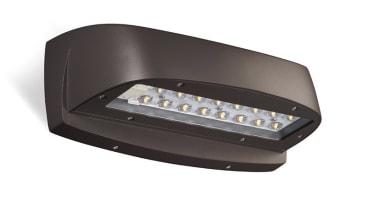

Signify Luminaires Stonco® LytePro Wall Sconce, Type 3, 120/277 VAC, 40 W Fixture, 700 mA, LED Lamp, 40 W Lamp, 16 Lamps, 10000 hr Average Life, Neutral White Light, 4000 K Color, 70 CRI, 3374 Lumens, IP65, Surface Mount, Die Cast Metal Housing, Bronze Textured Housing, 4.61 in H x 12.02 in W x 5.71 in D
The Philips Stonco® LytePro LED small wall sconce LPW16 features outstanding value in a compact, architectural design. This wall sconce features state of the art, long life and maintenance savings, in a combined discreet LED package with high precision over optic design. This powerful and precise combination offers outstanding energy savings with excellent photometric performance. LPW16 is ideal for entryways and corridors in addition to wall lighting applications requiring strong lateral spacing and forward pattern projection.
- 93 LPW
- B1/U0/G1 bug rating
- -40 deg F to 104 deg F rated ambient temperature
- LP16W-7, 40 W LED may effectively replace 100 to 150 W HID luminaries
- The Philips Stonco® LytePro LED small wall sconce LPW16 combines excellent performance, design and value to meet the needs of the energy and budget conscious
- The LPW16 is available for use in downward facing, surface wall mount applications, over recessed junction box or where power can be directly fed through back surface, whereby connections splices can be made inside the luminaire housing
- 40 W model two standard units are available in two different finishes
- 120 VAC button photocell is available in bronze only
- 30 W model standard units available in bronze only, with and without photocell 30W model is California title 24 compliant
- Die cast housing houses both the LED and driver assemblies, design incorporates an integrated heat sink to maximum thermal performance and reliability
- Backplate is corrosion free, composite polycarbonate, with built-in level bubble, offers integral interlocking hook and mount design for easy installation
- Easy interlocking hook and mount housing/backplate design for easy installation
- Mounts over 3.5 in, 4 in octagonal junction box and single gang switch boxes or can be directly lagged to surface
- Ensure proper steps for gasket/sealing luminaire to surface
- Provides up to 93 LPW in LPW16-7 and 96 LPW in LPW16-5 at the system level, standard color temp is 4000K +/-250K, minimum 70 CRI LED board and array
- Driver efficiency (>90% standard), 120 to 277 VAC, temp range -40 deg C to 40 deg C, open/short circuit protection, inherent surge protection up to (4 kVA)
- Each luminaire receives a fade and abrasion resistant, electrostatically applied, thermally cured, triglycidal isocyanurate (TGIC) textured polyester powder coat finish
Product Details
Signify Luminaires Stonco® LytePro Wall Sconce, Type 3, 120/277 VAC, 40 W Fixture, 700 mA, LED Lamp, 40 W Lamp, 16 Lamps, 10000 hr Average Life, Neutral White Light, 4000 K Color, 70 CRI, 3374 Lumens, IP65, Surface Mount, Die Cast Metal Housing, Bronze Textured Housing, 4.61 in H x 12.02 in W x 5.71 in D
The Philips Stonco® LytePro LED small wall sconce LPW16 features outstanding value in a compact, architectural design. This wall sconce features state of the art, long life and maintenance savings, in a combined discreet LED package with high precision over optic design. This powerful and precise combination offers outstanding energy savings with excellent photometric performance. LPW16 is ideal for entryways and corridors in addition to wall lighting applications requiring strong lateral spacing and forward pattern projection.
Attributes
Features
- 93 LPW
- B1/U0/G1 bug rating
- -40 deg F to 104 deg F rated ambient temperature
- LP16W-7, 40 W LED may effectively replace 100 to 150 W HID luminaries
- The Philips Stonco® LytePro LED small wall sconce LPW16 combines excellent performance, design and value to meet the needs of the energy and budget conscious
- The LPW16 is available for use in downward facing, surface wall mount applications, over recessed junction box or where power can be directly fed through back surface, whereby connections splices can be made inside the luminaire housing
- 40 W model two standard units are available in two different finishes
- 120 VAC button photocell is available in bronze only
- 30 W model standard units available in bronze only, with and without photocell 30W model is California title 24 compliant
- Die cast housing houses both the LED and driver assemblies, design incorporates an integrated heat sink to maximum thermal performance and reliability
- Backplate is corrosion free, composite polycarbonate, with built-in level bubble, offers integral interlocking hook and mount design for easy installation
- Easy interlocking hook and mount housing/backplate design for easy installation
- Mounts over 3.5 in, 4 in octagonal junction box and single gang switch boxes or can be directly lagged to surface
- Ensure proper steps for gasket/sealing luminaire to surface
- Provides up to 93 LPW in LPW16-7 and 96 LPW in LPW16-5 at the system level, standard color temp is 4000K +/-250K, minimum 70 CRI LED board and array
- Driver efficiency (>90% standard), 120 to 277 VAC, temp range -40 deg C to 40 deg C, open/short circuit protection, inherent surge protection up to (4 kVA)
- Each luminaire receives a fade and abrasion resistant, electrostatically applied, thermally cured, triglycidal isocyanurate (TGIC) textured polyester powder coat finish
