PHILIPS C6L35840MZ10U 6IN 40K 0-10V
Product Details
Attributes
Features
Resources

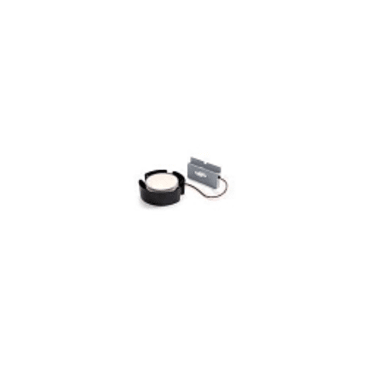

Signify Luminaires Lightolier Calculite® Downlight Engine, 6 in Aperture 55 deg Medium Beam Generation 3 Round Universal, Series: C6L, 120/277/347 VAC, 30 W Fixture, 0.11/0.25 A, LED Lamp, 25 W Lamp, 60000 hr Average Life, 40 K Color, 80 CRI, 0 to 10 VDC Dimmable Ballast, 3500 Lumens, Ceiling Mount
Calculite® 2-step or 2 SDCM rating provides uniformity from fixture to fixture and over the 60000 hr rated L90 lifetime, with no visible shifts. This is a criteria one must consider for maintenance consistency that affects the look and feel of the space over the lifetime of the installation. With Calculite® LED generation 3, specifying uniform light and color consistence is achieved by leveraging Philips technology advancements. For medium and wide beam distributions a large array of mid-flux chips is used to provide long lifetime lumen maintenance and a comfortable beam for general light while for narrow beams, a chip-on-board (COB) provides a tighter more defined beam for high ceiling applications. The combination of technologies allows designers to create the right layers of light to properly enhance a space per the design intent.
- L90 (90% lumen maintenance) up to 60000 hr and efficacies as high as 115 lm/W
- Construction, lowest plenum height with plug and play connector between frame and light engine
- Standard dimming to 1% for 0 to 10 VDC
- Maximize visual appeal by three beam spreads options to give the right distribution and light output
- Ultimate user comfort by providing 50 deg physical and 45 deg reflected cutoff, creating less brightness
- 0.25 A at 120 VAC, 0.11 A at 277 VAC amperage rating
Product Details
Signify Luminaires Lightolier Calculite® Downlight Engine, 6 in Aperture 55 deg Medium Beam Generation 3 Round Universal, Series: C6L, 120/277/347 VAC, 30 W Fixture, 0.11/0.25 A, LED Lamp, 25 W Lamp, 60000 hr Average Life, 40 K Color, 80 CRI, 0 to 10 VDC Dimmable Ballast, 3500 Lumens, Ceiling Mount
Calculite® 2-step or 2 SDCM rating provides uniformity from fixture to fixture and over the 60000 hr rated L90 lifetime, with no visible shifts. This is a criteria one must consider for maintenance consistency that affects the look and feel of the space over the lifetime of the installation. With Calculite® LED generation 3, specifying uniform light and color consistence is achieved by leveraging Philips technology advancements. For medium and wide beam distributions a large array of mid-flux chips is used to provide long lifetime lumen maintenance and a comfortable beam for general light while for narrow beams, a chip-on-board (COB) provides a tighter more defined beam for high ceiling applications. The combination of technologies allows designers to create the right layers of light to properly enhance a space per the design intent.
Attributes
Features
- L90 (90% lumen maintenance) up to 60000 hr and efficacies as high as 115 lm/W
- Construction, lowest plenum height with plug and play connector between frame and light engine
- Standard dimming to 1% for 0 to 10 VDC
- Maximize visual appeal by three beam spreads options to give the right distribution and light output
- Ultimate user comfort by providing 50 deg physical and 45 deg reflected cutoff, creating less brightness
- 0.25 A at 120 VAC, 0.11 A at 277 VAC amperage rating
