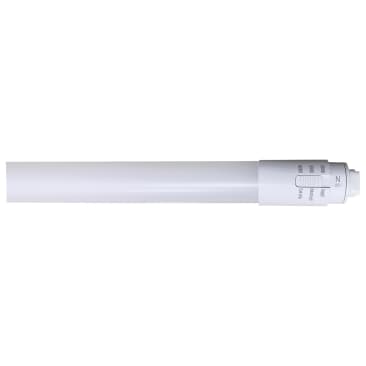

SATCO S11753 4FT 18W 120-277V CCT SELECTABLE HO/VHO BASE T8 LED RECESSED DOUBLE CONTACT WHITE FINISH

MFR Part #: S11753
SKU #: 1269346
Brand: SATCO®
UPC: 045923117534
SATCO® S11753 LED Lamp, 18 W, 90 W Incandescent Equivalent, R17d HO/VHO Recessed Double Contact Lamp Base Linear Lamp, T8 Shape, 2500, 2600, 2400 Lumens
5 Years Limited
This product may be subject to ecological fees.
cRUus | ETLus | cULus | RoHS | FCC | NSF | SDS

SATCO®, S11753, Lamp, LED, 18T8/LED/48-CCT/BP/R17D Designation, 18 W Wattage, 90 W Incandescent Equivalent, 120 to 277 V, Linear Lamp, R17d HO/VHO Recessed Double Contact Lamp Base, T8 Shape, 2500, 2600, 2400 Lumens, 50000 hr Average Life, Cool White/Daylight, 83 CRI, 4000/5000/6500 K Color Temperature, Type B Bypass Ballast, Enclosed Fixture, Spread Beam, 180 deg Beam, 48 in Dimensions

SATCO NUVO's LED T8 lamps with Fa8 or R17d bases are some of our most versatile lamps. Featuring ColorQuick selectable color technology, these lamps allow for easy selection of 4000K/5000K/6500K color temperatures at installation. The P.E.T. coated lamp provides shatterproof protection to ensure safe illumination anywhere including food service applications.

Product Details

SATCO®, S11753, Lamp, LED, 18T8/LED/48-CCT/BP/R17D Designation, 18 W Wattage, 90 W Incandescent Equivalent, 120 to 277 V, Linear Lamp, R17d HO/VHO Recessed Double Contact Lamp Base, T8 Shape, 2500, 2600, 2400 Lumens, 50000 hr Average Life, Cool White/Daylight, 83 CRI, 4000/5000/6500 K Color Temperature, Type B Bypass Ballast, Enclosed Fixture, Spread Beam, 180 deg Beam, 48 in Dimensions

SATCO NUVO's LED T8 lamps with Fa8 or R17d bases are some of our most versatile lamps. Featuring ColorQuick selectable color technology, these lamps allow for easy selection of 4000K/5000K/6500K color temperatures at installation. The P.E.T. coated lamp provides shatterproof protection to ensure safe illumination anywhere including food service applications.

Attributes

Ballast Type: Type B Bypass
Color Temperature: 4000/5000/6500 K
Country Of Origin: China
Lamp Type: Linear
Lumens: 2500, 2600, 2400 Lumens
Wattage: 18 W
Average Life: 50000 hr
Beam Angle: 180 deg
Beam Type: Spread
Color: Cool White/Daylight
Color Rendering Index (CRI): 83
Designation: 18T8/LED/48-CCT/BP/R17D
Dimensions: 48 in
Fixture Type: Enclosed
Incandescent Equivalent: 90 W
Lamp Base Type: R17d HO/VHO Recessed Double Contact
Lamp Finish: White
Shape: T8
Type: LED
Voltage Rating: 120 to 277 V

Features

  • Direct replacement for fluorescent T8 or T12 lamps
  • Compatible with S8002 Emergency Driver
  • CCT Selectable
