SATCO S28980 Image 1

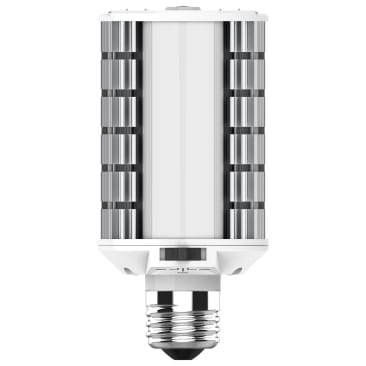

SATCO S28980 10/20/30W 100-277V 3/4/5K CCT SELECTABLE MEDIUM BASE LED HI-PRO WALL PACK

MFR Part #: S28980
SKU #: 1269339
Brand: SATCO®
UPC: 045923289804
SATCO® S28980 Replacement Wall Pack, 10, 20, 30 W, Medium Lamp Base LED Lamp, Corncob Shape, 1700, 3200, 4500 Lumens
5 Years
This product may be subject to ecological fees.
cULus Classified | cULus Listed | PROP65

SATCO®, S28980, Wall Pack, Replacement, 30W/LEDWP/CCT/E26/100-277V Designation, 10, 20, 30 W Wattage, 100 to 277 V, LED Lamp, Medium Lamp Base, Corncob Shape, 1700, 3200, 4500 Lumens, 50000 hr Average Life, White, 80 CRI, 3000 K Color Temperature, Enclosed Fixture, 180 deg Beam, 7.00 L x 3.62 W x 3.62 Dia in Dimensions

Satco's wattage and CCT selectable Hi-Pro LED lamp is an energy efficient lighting solution for large scale lighting applications. Designed to focus clean and efficient LED light at 180 degrees from higher fixtures, this lamp is perfect for parks, parking lots, or anywhere a cascade of light is needed for safety and impact. This versatile lamp is dimmable and delivers 50,000 hours of illumination.

Product Details

SATCO®, S28980, Wall Pack, Replacement, 30W/LEDWP/CCT/E26/100-277V Designation, 10, 20, 30 W Wattage, 100 to 277 V, LED Lamp, Medium Lamp Base, Corncob Shape, 1700, 3200, 4500 Lumens, 50000 hr Average Life, White, 80 CRI, 3000 K Color Temperature, Enclosed Fixture, 180 deg Beam, 7.00 L x 3.62 W x 3.62 Dia in Dimensions

Satco's wattage and CCT selectable Hi-Pro LED lamp is an energy efficient lighting solution for large scale lighting applications. Designed to focus clean and efficient LED light at 180 degrees from higher fixtures, this lamp is perfect for parks, parking lots, or anywhere a cascade of light is needed for safety and impact. This versatile lamp is dimmable and delivers 50,000 hours of illumination.

Attributes

Average Life: 50000 hr
Beam Angle: 180 deg
Color: White
Color Rendering Index (CRI): 80
Color Temperature: 3000 K
Country Of Origin: China
Designation: 30W/LEDWP/CCT/E26/100-277V
Dimensions: 7.00 L x 3.62 W x 3.62 Dia in
Fixture Type: Enclosed
Lamp Base Type: Medium
Lamp Finish: White
Lamp Type: LED
Lumens: 1700, 3200, 4500 Lumens
Shape: Corncob
Type: Replacement
Voltage Rating: 100 to 277 V
Wattage: 10, 20, 30 W

Features

  • CCT Selectable-3000K, 4000K, 5000K
  • Wattage Selectable
  • Advanced Thermal Management
  • 4KV built-in surge protection
  • Rated for use in enclosed fixtures
  • Damp Location Rated
  • Dimmable
  • -30 deg C (-22 deg F) to +45 deg C (+113 deg F) Operating Temperature
  • 1.45 lb Weight
  • 150 to 175 W HID Equivalent

Resources

Instruction/Installation Manual
Specification Sheet
