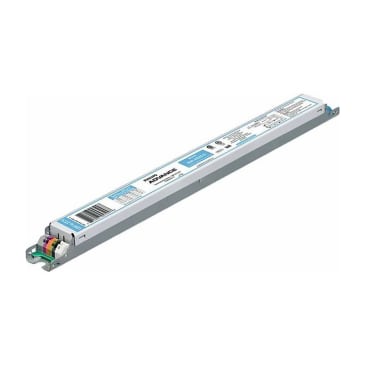

PHILIPS 502336 Image 1

PHILIPS 502336 MARK7 DIMMABLE T5 FLUORESCENT BALLAST F24T5HO 120-277V

MFR Part #: 502336
SKU #: 1117216
Brand: Signify | Advance
UPC: 781087134597
Advance IntelliVolt® MARK 7 0-10V 502336 Controllable Electronic D Can Ballast, F24T5HO Lamp, 24 W Lamp, 120 to 277 VAC, Programmed, 1 Ballast Factor
This product may be subject to ecological fees.
Outdoor Applications
CEC Certified | CSA Certified | FCC Consumer Approved | UL Listed

Advance IntelliVolt® MARK 7 0-10V Ballast, Controllable Electronic D Can, F24T5HO Lamp, 24 W Lamp, 8 W Wattage, 120 to 277 VAC, 0.09 to 0.21 A, 50/60 Hz Frequency, Programmed Start, 50 deg F Minimum Starting, Total Harmonic Distortion: 0.1, Power Factor: 0.98, Yes Dimmable, 1 Lamp, Thermal Protection: Class P, Ballast Factor: 1, 70 deg C, Metal, 16.7 in L x 1.18 in W x 1 in H Dimensions

The MARK 7 0-10V series of dimmable electronic ballasts offer maximum versatility by incorporating separate control leads for use with a wide array of controllers, including occupancy sensors, daylight harvesting controls and building management systems from more than 40 manufacturers. When paired with linear fluorescent and 4-pin compact fluorescent lamps, these ballasts optimize the benefits of such popular sustainable lighting techniques as daylight harvesting, occupancy sensing and load shedding to satisfy the need for an affordable, flexible and versatile controllable lighting solution.

Product Details

Advance IntelliVolt® MARK 7 0-10V Ballast, Controllable Electronic D Can, F24T5HO Lamp, 24 W Lamp, 8 W Wattage, 120 to 277 VAC, 0.09 to 0.21 A, 50/60 Hz Frequency, Programmed Start, 50 deg F Minimum Starting, Total Harmonic Distortion: 0.1, Power Factor: 0.98, Yes Dimmable, 1 Lamp, Thermal Protection: Class P, Ballast Factor: 1, 70 deg C, Metal, 16.7 in L x 1.18 in W x 1 in H Dimensions

The MARK 7 0-10V series of dimmable electronic ballasts offer maximum versatility by incorporating separate control leads for use with a wide array of controllers, including occupancy sensors, daylight harvesting controls and building management systems from more than 40 manufacturers. When paired with linear fluorescent and 4-pin compact fluorescent lamps, these ballasts optimize the benefits of such popular sustainable lighting techniques as daylight harvesting, occupancy sensing and load shedding to satisfy the need for an affordable, flexible and versatile controllable lighting solution.

Attributes

Country Of OriginUS
Lamp Wattage24 W
Number of Lamps1
Start TypeProgrammed
Voltage Rating120 to 277 VAC
Wattage8 W
Amperage Rating0.09 to 0.21 A
Ballast Factor1
Dimensions16.7 in L x 1.18 in W x 1 in H
DimmableYes
Frequency Rating50/60 Hz
Lamp TypeF24T5HO
MaterialMetal
Minimum Starting Temperature50 deg F
Power Factor.98
Temperature Range70 deg C
Thermal ProtectionClass P
Total Harmonic Distortion.1
TypeControllable Electronic D Can
