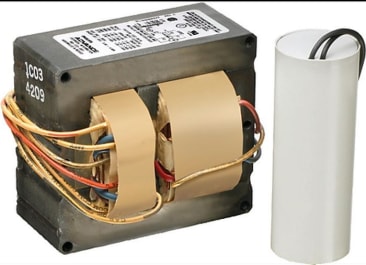

PHILIPS 503938 HIGH PRESS SOD BALLAST 400W S51 480V/120T C&C
MFR Part #: 503938
SKU #: 1117237
Brand: Signify | Advance
UPC: 781087067000
Advance 503938 Magnetic Core and Coil/CWA HID Ballast, 200/400 W, 480 V AC, Pulse, 1 Ballast Factor
This product may be subject to ecological fees.
Outdoor Applications
UL Recognized | CSA Certified | UL Listed
Product Details
Attributes
Features
Resources
Advance HID Ballast, Magnetic Core and Coil/CWA, 200/400 W Lamp, 464 W, 480 V AC, 0.97 A, 60 Hz, Pulse Start, -40 deg F Minimum Starting, Power Factor: 0.9, 1 Lamp, Ballast Factor: 1, ANSI S51 M169 Ballast Grade, 4.8 in L x 4.3 in W x 4.3 in H
Amperage Rating:.97 A
Ballast Factor:1
Ballast Grade:ANSI S51 M169
Dimensions:4.8 in L x 4.3 in W x 4.3 in H
Frequency Rating:60 Hz
Lamp Wattage:200/400 W
Minimum Starting Temperature:-40 deg F
Number of Lamps:1
Power Factor:.9
Start Type:Pulse
Type:Magnetic Core and Coil/CWA
Voltage Rating:480 V AC
Wattage:464 W
- The basic ballast is the open core and coil which is most often used as a component within a lighting luminaire
- The core and coil also forms the nucleus of Philips Advance five other ballast configurations
- Core and coil ballast with dry film capacitor
- 120 VAC tap
- Aluminum coil
- Vacuum pressure impregnated with a silica filled polyester varnish
Product Details
Advance HID Ballast, Magnetic Core and Coil/CWA, 200/400 W Lamp, 464 W, 480 V AC, 0.97 A, 60 Hz, Pulse Start, -40 deg F Minimum Starting, Power Factor: 0.9, 1 Lamp, Ballast Factor: 1, ANSI S51 M169 Ballast Grade, 4.8 in L x 4.3 in W x 4.3 in H
Attributes
Amperage Rating: .97 A
Ballast Factor: 1
Ballast Grade: ANSI S51 M169
Dimensions: 4.8 in L x 4.3 in W x 4.3 in H
Frequency Rating: 60 Hz
Lamp Wattage: 200/400 W
Minimum Starting Temperature: -40 deg F
Number of Lamps: 1
Power Factor: .9
Start Type: Pulse
Type: Magnetic Core and Coil/CWA
Voltage Rating: 480 V AC
Wattage: 464 W
Features
- The basic ballast is the open core and coil which is most often used as a component within a lighting luminaire
- The core and coil also forms the nucleus of Philips Advance five other ballast configurations
- Core and coil ballast with dry film capacitor
- 120 VAC tap
- Aluminum coil
- Vacuum pressure impregnated with a silica filled polyester varnish
